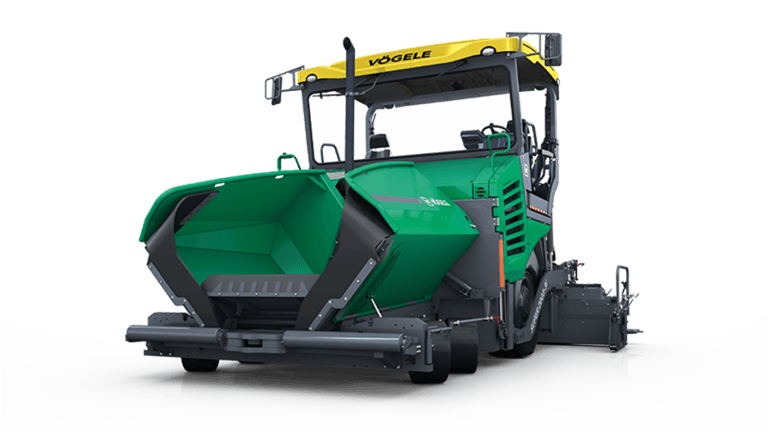

VOGELE SUPER 2003-3i
Highway Class
The powerful Highway Class wheeled paver – A true SUPER paver
With the SUPER 2003-3i, VÖGELE has now developed an entirely new paver for the North American market. The wheeled paver is designed primarily for use in highway construction and large-scale commercial applications, which are all about power and productivity. With a powerful, 6-cylinder engine and high-output hydraulic drives, the paver is fully equipped for these jobs.
| UNDERCARRIAGE - Travel speed (up to) | 12.5 mph |
|---|---|
| UNDERCARRIAGE - Option | 2 rear and 2 front wheels (6x4) |
| DRIVE - Exhaust emissions after-treatment | DOC, SCR |
| UNDERCARRIAGE - Parking brake | spring-loaded multiple-disk brake, maintenance-free |
| UNDERCARRIAGE - Tire equipment | Elastic solid rubber tires |
| DRIVE - Exhaust emissions standard | European exhaust emissions standard 4, US standard EPA Tier 4f |
| SCREED - Power supply | three-phase AC generator |
| UNDERCARRIAGE - Paving speed (up to) | 250 fpm |
| UNDERCARRIAGE - Service brake | generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free |
| DRIVE - Manufacturer | Cummins |
| UNDERCARRIAGE - Steering | hydraulic |
| SCREED - Screed heating | electric, thermostat-controlled |
| UNDERCARRIAGE - Tire size, rear wheels | 445/95R25 |
| UNDERCARRIAGE - Standard | 2 rear wheels (6x2) |
| DRIVE - Nominal output | 250 hp / 2,000 RPM |
| DRIVE - Type | QSB 6.7 - C250 |
| UNDERCARRIAGE - Option | 2 rear and 4 front wheels (6x6) |
| DRIVE - ECO mode output | 224 hp / 1,700 rpm |
| SCREED - Screed | Type Basic width Maximum width Compacting systems VF 600 10 ft 25 ft 5 in V VR 600 10 ft 23 ft 11 in V AB 600 9 ft 10 in 24 ft 7 in TV |
| UNDERCARRIAGE - Version | Separate hydraulic drives |
| UNDERCARRIAGE - Auxiliary brake | hydrostatic brake |
| DRIVE - Version | liquid-cooled 6-cylinder diesel engine |
| UNDERCARRIAGE - Version | 4, mounted on bogies |
| UNDERCARRIAGE - Version | 2, pneumatic, tubeless |
| CONVEYORS AND AUGERS - Drive | separate hydraulic drives, proportional control |
| CONVEYORS AND AUGERS - Height | infinitely variable |
| MATERIAL HOPPER - Standard | oscillating |
| DIMENSIONS AND WEIGHTS - Operating weight | Screed Total weight VR 600 49,160 lbs VF 600 48,280 lbs AB 600 TV 49,420 lbs |
| DIMENSIONS AND WEIGHTS - Maximum laydown rate | 1,540 US t/hr |
| CONVEYORS AND AUGERS - Version | with replaceable auger blades, reversible direction of rotation |
| CONVEYORS AND AUGERS - Version | with replaceable feeder bars, direction of conveyor temporarily reversible |
| MATERIAL HOPPER - Positions | can be adjusted in a forward direction by 3 or 6 in |
| CONVEYORS AND AUGERS - Speed | 130 rpm |
| DIMENSIONS AND WEIGHTS - Length | Screed Total length VR 600 22 ft 6 in VF 600 21 ft 6 in AB 600 TV 21 ft 9 in |
| CONVEYORS AND AUGERS - Standard height | hydraulically adjustable by 6 in |
| CONVEYORS AND AUGERS - Lubrication | centralized lubrication system, electrically-driven grease pump |
| UNDERCARRIAGE - Tire size, front wheels | 540/300–390 |
| CONVEYORS AND AUGERS - Augers | 2 |
Featured Content
The philosophy behind the machine concept of the Premium Line road pavers is “Lower consumption – lower emissions – lower costs”. The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. That is why the ErgoPlus 3 operating concept focuses on the operator. With VÖGELE pavers, the user consequently retains full control over the machine and construction project.
With their standard Pivot Steer function, the SUPER wheeled pavers are almost as agile as the crawler-track models. A minimal internal radius enables the machines to turn virtually on the spot. This is a huge advantage, particularly on cramped job sites, such as those found in urban environments.
VÖGELE Niveltronic Plus Automated Grade and Slope Control is a unique grade and slope control system providing the basis for efficient paving true to line and level on any kind of base. Niveltronic is an in-house development by VÖGELE and is based on many years’ experience in grade and slope control technology. In terms of ease of operation, quality and reliability, Niveltronic Plus represents the perfect solution for all grade and slope control tasks.
