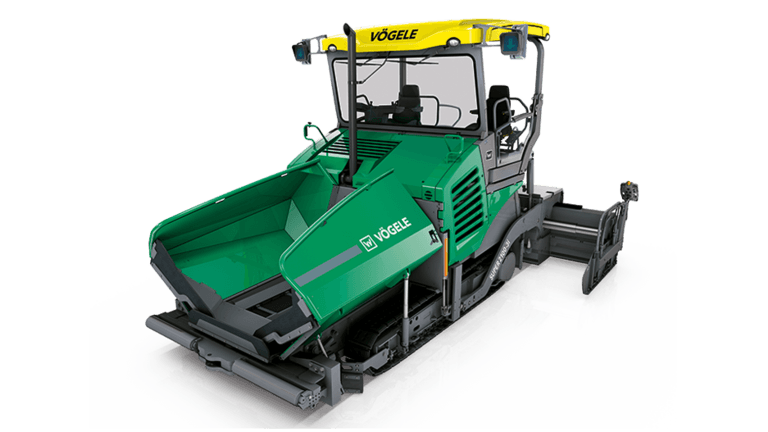

VOGELE SUPER 2100-3i
Highway Class
Powerful, economical and quiet – A true SUPER paver
The SUPER 2100-3i is the most powerful paver in the new "Dash 3" generation from VÖGELE. This cutting-edge machine features a future-oriented design, more comfort and convenience, as well as high performance with minimum consumption. Product designers mainly focused on ecological, economic and ergonomic aspects when developing the “Dash 3” generation.
| UNDERCARRIAGE - Paving speed (up to) | 79 fpm |
|---|---|
| DRIVE - Manufacturer | Cummins |
| UNDERCARRIAGE - Travel speed (up to) | 2.8 mph |
| UNDERCARRIAGE - Version | provided with rubber pads |
| DRIVE - Version | liquid-cooled 6-cylinder diesel engine |
| DRIVE - Daily noise exposure level | 80 dB |
| DRIVE - ECO mode output | 250 hp / 1,700 rpm |
| SCREED - Screed | Type Basic width Maximum width (TV, TP1) Compacting systems AB 500 8 ft 4 in 27 ft 11 in TV, TP1, TP2, TP2 Plus AB 600 9 ft 10 in 31 ft 2 in TV, TP1, TP2, TP2 Plus SB 300 9 ft 10 in 42 ft 8 in TV, TP1, TP2 SB 300 HD 9 ft 10 in 32 ft 10 in TV |
| DRIVE - Type | B6.7 - C250 |
| UNDERCARRIAGE - Lubrication of track rollers | lifetime |
| DRIVE - Exhaust emissions standard | European exhaust emissions standard V, US standard EPA Tier 4f |
| SCREED - Power supply | three-phase AC generator |
| DRIVE - Sound power level | 108 dB |
| UNDERCARRIAGE - Traction drive crawler tracks | electronically controlled separate hydraulic drive provided for each crawler track |
| UNDERCARRIAGE - Ground contact | 3,060 mm x 305 mm |
| SCREED - Screed heating | electric, thermostat-controlled |
| UNDERCARRIAGE - Track tension adjuster | spring assembly |
| DRIVE - Exhaust emissions after-treatment | DOC, DPF, SCR |
| DRIVE - Nominal output | 250 hp / 2,000 RPM |
| CONVEYORS AND AUGERS - Speed | 80 rpm |
| DIMENSIONS AND WEIGHTS - Operating weight | Screed Total weight AB 500 TV 48,390 lbs AB 500 TP1 49,160 lbs AB 500 TP2 49,820 lbs AB 500 TP2 Plus 50,600 lbs AB 600 TV 49,380 lbs AB 600 TP1 50,160 lbs AB 600 TP2 50,930 lbs AB 600 TP2 Plus 51,810 lbs SB 300 TV 46,300 lbs SB 300 TP1 46,630 lbs SB 300 TP2 46,960 lbs SB 300 HD TV 46,410 lbs |
| MATERIAL HOPPER - Option | sprung (PaveDock) |
| MATERIAL HOPPER - Standard | oscillating |
| CONVEYORS AND AUGERS - Standard height | hydraulically adjustable by 6 in |
| CONVEYORS AND AUGERS - Augers | 2 |
| MATERIAL HOPPER - Positions | can be adjusted in a forward direction by 3 or 6 in |
| DIMENSIONS AND WEIGHTS - Maximum laydown rate | 1,210 US t/hr |
| DIMENSIONS AND WEIGHTS - Length | Screed Total length AB 500/AB 600 TV 21 ft 11 in AB 500/AB 600 TP 22 ft 4 in SB 300 22 ft 1 in |
| CONVEYORS AND AUGERS - Height | infinitely variable |
| CONVEYORS AND AUGERS - Drive | separate hydraulic drives, proportional control |
| CONVEYORS AND AUGERS - Version | with replaceable auger blades, reversible direction of rotation |
| CONVEYORS AND AUGERS - Lubrication | centralized lubrication system, electrically-driven grease pump |
| CONVEYORS AND AUGERS - Version | with replaceable feeder bars, direction of conveyor temporarily reversible |
Featured Content
VÖGELE Niveltronic Plus Automated Grade and Slope Control is a unique grade and slope control system providing the basis for efficient paving true to line and level on any kind of base. Niveltronic is an in-house development by VÖGELE and is based on many years’ experience in grade and slope control technology. In terms of ease of operation, quality and reliability, Niveltronic Plus represents the perfect solution for all grade and slope control tasks.
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.
The philosophy behind the machine concept of the Premium Line road pavers is “Lower consumption – lower emissions – lower costs”. The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.
