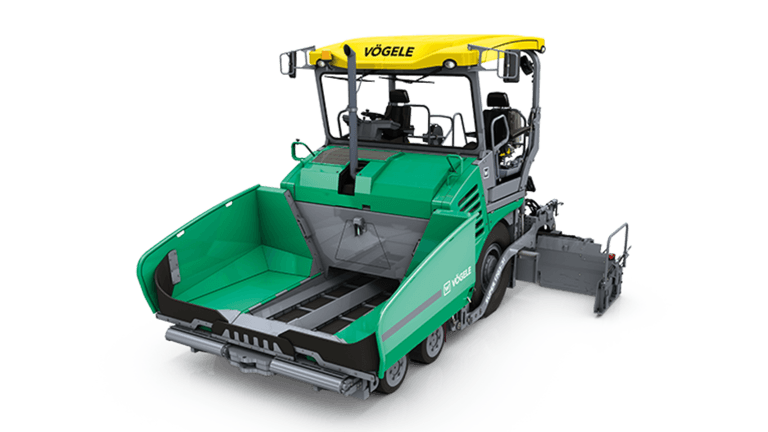

VOGELE SUPER 1703-3i
Road Pavers
The compact-sized wheeled paver in the 8-foot-class
The wheeled SUPER 1703-3i paver has been specially designed for the requirements of the North American and Australian market. The 8-foot class wheeled paver is an all-rounder with great mobility. With its compact dimensions and Pivot Steer brake, the wheeled paver features excellent maneuverability, making it suitable for a wide variety of applications. The VÖGELE ErgoPlus 3 operating concept makes using the paver even safer and easier.
| UNDERCARRIAGE - Option | 2 rear and 4 front wheels (6x6) |
|---|---|
| DRIVE - Exhaust emissions after-treatment | DOC, SCR |
| DRIVE - Version | liquid-cooled 4-cylinder diesel engine |
| UNDERCARRIAGE - Service brake | generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free |
| DRIVE - Exhaust emissions standard | European exhaust emissions standard 4, US standard EPA Tier 4f |
| UNDERCARRIAGE - Steering | hydraulic |
| DRIVE - ECO mode output | 160 hp / 1,700 rpm |
| UNDERCARRIAGE - Parking brake | spring-loaded multiple-disk brake, maintenance-free |
| SCREED - Screed heating | electric, thermostat-controlled |
| UNDERCARRIAGE - Tire equipment | Elastic solid rubber tires |
| DRIVE - Nominal output | 173 hp / 2,000 RPM |
| UNDERCARRIAGE - Standard | 2 rear and 2 front wheels (6x4) |
| DRIVE - Manufacturer | Cummins |
| UNDERCARRIAGE - Version | 4, mounted on bogies |
| SCREED - Screed | Type Basic width Maximum width Compacting systems VF 500 8 ft 19 ft 6 in V |
| UNDERCARRIAGE - Paving speed (up to) | 250 fpm |
| UNDERCARRIAGE - Version | 2, pneumatic, tubeless |
| SCREED - Power supply | three-phase AC generator |
| UNDERCARRIAGE - Version | Separate hydraulic drives |
| UNDERCARRIAGE - Auxiliary brake | hydrostatic brake |
| UNDERCARRIAGE - Travel speed (up to) | 12.5 mph |
| UNDERCARRIAGE - Tire size, rear wheels | 14.00 R25 |
| DRIVE - Type | QSB 4.5 - C173 |
| CONVEYORS AND AUGERS - Height | infinitely variable |
| DIMENSIONS AND WEIGHTS - Operating weight | Screed Total weight VF 500 38,030 lbs |
| MATERIAL HOPPER - Standard | oscillating |
| CONVEYORS AND AUGERS - Version | with replaceable feeder bars, direction of conveyor temporarily reversible |
| CONVEYORS AND AUGERS - Augers | 2 |
| MATERIAL HOPPER - Positions | can be adjusted in a forward direction by 3 or 6 in |
| CONVEYORS AND AUGERS - Version | with replaceable auger blades, reversible direction of rotation |
| UNDERCARRIAGE - Tire size, front wheels | 540/300–390 |
| DIMENSIONS AND WEIGHTS - Length | Screed Total length VF 500 19 ft 7 in |
| CONVEYORS AND AUGERS - Standard height | hydraulically adjustable by 6 in |
| CONVEYORS AND AUGERS - Drive | separate hydraulic drives, proportional control |
| CONVEYORS AND AUGERS - Lubrication | centralized lubrication system, electrically-driven grease pump |
| DIMENSIONS AND WEIGHTS - Maximum laydown rate | 770 US t/hr |
| CONVEYORS AND AUGERS - Speed | 120 rpm |
Featured Content
With their standard Pivot Steer function, the SUPER wheeled pavers are almost as agile as the crawler-track models. A minimal internal radius enables the machines to turn virtually on the spot. This is a huge advantage, particularly on cramped job sites, such as those found in urban environments.
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. That is why the ErgoPlus 3 operating concept focuses on the operator. With VÖGELE pavers, the user consequently retains full control over the machine and construction project.
VÖGELE Niveltronic Plus Automated Grade and Slope Control is a unique grade and slope control system providing the basis for efficient paving true to line and level on any kind of base. Niveltronic is an in-house development by VÖGELE and is based on many years’ experience in grade and slope control technology. In terms of ease of operation, quality and reliability, Niveltronic Plus represents the perfect solution for all grade and slope control tasks.
The philosophy behind the machine concept of the Premium Line road pavers is “Lower consumption – lower emissions – lower costs”. The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.
