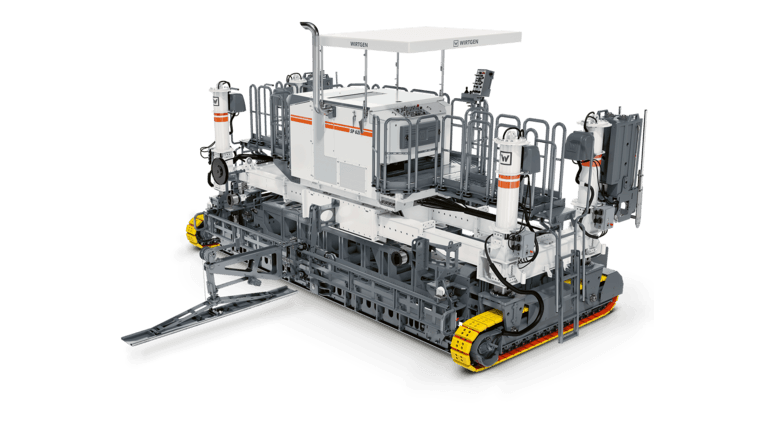

WIRTGEN SP 62i
Concrete Paving Equipment
Equipment Specifications
| SPECIFICATIONS - Machine weight | 52,910 - 74,957 lbs |
|---|---|
| SPECIFICATIONS - Exhaust emissions category | EU Stage 4/US EPA Tier 4f |
| SPECIFICATIONS - Height adjustment, mechanical | 16 in |
| SPECIFICATIONS - Paving height | 0 - 18 in |
| SPECIFICATIONS - Rated power | 180 kW / 241 hp |
| SPECIFICATIONS - Paving width | 12 ft - 24 ft |
| SPECIFICATIONS - Number of crawler tracks | 2 |
|---|---|
| SPECIFICATIONS - Displacement | 369.5 in³ |
| SPECIFICATIONS - Paving speed | 0 – 20 ft / min |
| SPECIFICATIONS - Travel speed | 0 – 18 m/min |
Featured Content
In inset application, the concrete is either deposited right in front of the slipform paver or is fed in front of the machine from the side via a belt conveyor or side feeder. In the next step, the concrete is distributed evenly across the full paving width by a spreading auger or spreading plow. Built-in electrical or hydraulic vibrators ensure homogeneous compaction of the concrete. The inset mold forms the concrete surface to the specified thickness and width while the slipform paver travels forward. In addition, a dowel bar inserter can be added which inserts the dowel bars into the concrete as specified parallel to the paver’s direction of travel. Central tie bars or side tie bars can be inserted perpendicular to the concrete pavement. The oscillating beam scrapes the surface across the roadway. Afterwards, a super smoother can smooth the concrete surface.
WIRTGEN’s leveling technology adjusts height, depth, and pitch for extremely accurate results. In the process, the system permanently compares the actual values to predefined target values and adjusts the deviations proportionally. This state-of-the-art machine technology consistently guarantees outstanding leveling results and significantly reduces the machine operator’s workload.
WIRTGEN offers customers reliable hardware and software developed in-house. In this context, a variety of systems are used depending on the construction project and local conditions at the job site.
Compact, Fully Modular Inset Slipform Paver
-
The flexible 2-track slipform paver with concrete equipment specially adapted to the US market is suitable for a wide range of paving jobs from 12 ft to 24 ft wide and 18 in thick. -
The fully modular machine design and simple changeover and expansion options make the machine highly adaptable to any job site situation. -
The intelligent, electronic steering and control concept as well as the sensitive track steering of the two-track machine guarantee high-precision concrete paving. -
Simple machine changeover makes fast transport and maximum machine availability possible. -
The particularly low ground pressure simplifies operation, even under difficult operating conditions.
