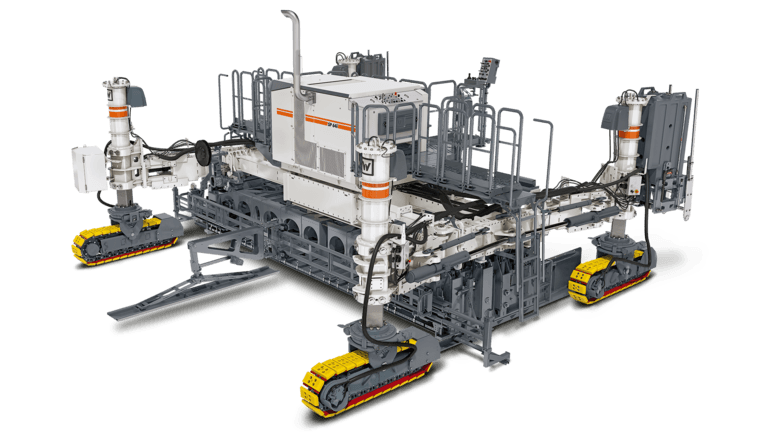

Wirtgen SP 64i

SP 64i

  • Wirtgen
  • Inset Slipform Pavers

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Fully Modular Inset Slipform Paver

  • The flexible 4-track slipform paver with concrete equipment specially adapted to the US market is suitable for a wide range of paving jobs with the highest quality surface evenness from 6 ft to 24 ft wide and 18 in thick (cannot be combined with all options).
  • The particularly low ground pressure due to specially designed, longer crawler units simplifies operation under difficult operating conditions.
  • The fully modular machine design, simple changeover and expansion, and hydraulic swing arms make the machine highly adaptable to any job site situation.
  • The intelligent, electronic steering and control system ensures precise handling of the four crawler units and thus precise concrete paving.
  • Precise insertion of tie bars and dowels via a self-loading dowel bar inserter (optional) makes it possible to pave concrete that requires reinforcing steel.
  • + Expand All
  • - Close All
  • Slipform paving inset

    In inset application, the concrete is either deposited right in front of the slipform paver or is fed in front of the machine from the side via a belt conveyor or side feeder. In the next step, the concrete is distributed evenly across the full paving width by a spreading auger or spreading plow. Built-in electrical or hydraulic vibrators ensure homogeneous compaction of the concrete. The inset mold forms the concrete surface to the specified thickness and width while the slipform paver travels forward. In addition, a dowel bar inserter can be added which inserts the dowel bars into the concrete as specified parallel to the paver’s direction of travel. Central tie bars or side tie bars can be inserted perpendicular to the concrete pavement. The oscillating beam scrapes the surface across the roadway. Afterwards, a super smoother can smooth the concrete surface.

  • WIRTGEN leveling technology

    WIRTGEN’s leveling technology adjusts height, depth, and pitch for extremely accurate results. In the process, the system permanently compares the actual values to predefined target values and adjusts the deviations proportionally. This state-of-the-art machine technology consistently guarantees outstanding leveling results and significantly reduces the machine operator’s workload.

    WIRTGEN offers customers reliable hardware and software developed in-house. In this context, a variety of systems are used depending on the construction project and local conditions at the job site.

SPECIFICATIONS

Height adjustment, mechanical 16 in
Machine weight 37,500 - 99,200 lbs
Displacement 369.5 Imp.gal
Exhaust emissions category EU Stage 4/US EPA Tier 4f
Operating weight, CE 42,000 lbs
Paving width with crown 12 ft - 24 ft
Number of crawler tracks 4
Rated power 180 kW / 241 hp
Paving height 0 - 18 in
Paving width 6 ft 6 in - 24 ft
Paving speed B0: 0 – 20 ft / min B1: 0 – 23 ft / min
Travel speed B0: 0 – 69 ft/min B1 0 – 77 ft/min
