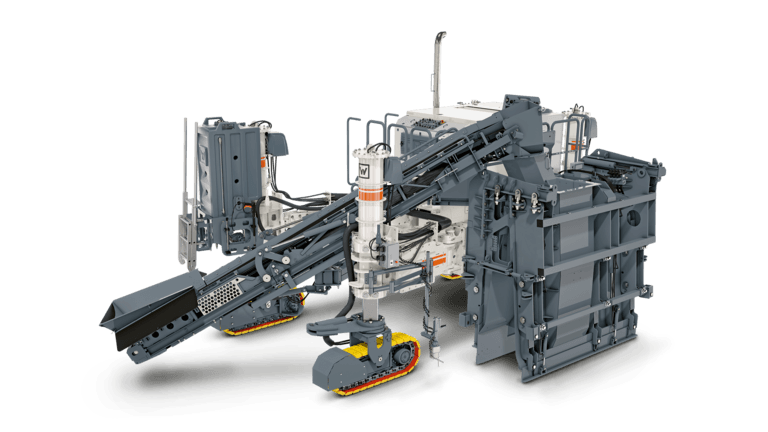

WIRTGEN SP 61i
Offset Slipform Pavers
Equipment Specifications
| SPECIFICATIONS - Exhaust emissions category | EU Stage 4/US EPA Tier 4f |
|---|---|
| SPECIFICATIONS - Max. mold width | 13 ft 1 in |
| SPECIFICATIONS - Operating weight, CE | 38,360 lbs |
| SPECIFICATIONS - Number of crawler tracks | 3 |
| SPECIFICATIONS - Machine weight | 34,171 - 99,208 lbs |
| SPECIFICATIONS - Height adjustment, mechanical | 1 ft 4 in |
| SPECIFICATIONS - Max. mold height | 9 ft 10 in |
|---|---|
| SPECIFICATIONS - Rated power | 180 kW / 241 hp |
| SPECIFICATIONS - Displacement | 369.6 in³ |
| SPECIFICATIONS - Paving speed | 0 – 6 m/min |
| SPECIFICATIONS - Travel speed | 0 – 21 m/min |
Featured Content
WIRTGEN’s leveling technology adjusts height, depth, and pitch for extremely accurate results. In the process, the system permanently compares the actual values to predefined target values and adjusts the deviations proportionally. This state-of-the-art machine technology consistently guarantees outstanding leveling results and significantly reduces the machine operator’s workload.
WIRTGEN offers customers reliable hardware and software developed in-house. In this context, a variety of systems are used depending on the construction project and local conditions at the job site.
In offset applications, a concrete mixer transfers the concrete to the receiving hopper. The material is transported into the slipform via a swivel-mounted conveyor belt or a swivel-mounted auger conveyor. Depending on the machine model, the conveyor belt is available in various lengths and in a folding version. Different versions of the auger conveyor are also available. Whether conveyor belt or auger – all of the settings such as conveyor speed, inclination angle, or position can be adjusted at the touch of a button.
Versatile, Fully Modular, High-Performance Offset Slipform Paver
-
The flexible slipform paver is suitable for paving a wide variety of monolithic profiles up to 9 ft 10 in high.
-
WIRTGEN’s offset molds are custom-built to customer specifications and are available in a variety of profile shapes.
-
Concrete surfaces up to 13 ft 1 in paving width can be easily paved using the offset method.
-
Special slipforms make the construction of concrete safety barriers with variable paving heights possible – for example from 3 ft 3 in to 9 ft 10 in.
-
The fully modular machine design and simple changeover and expansion options guarantee that the machine can be easily adapted to any job site situation.
