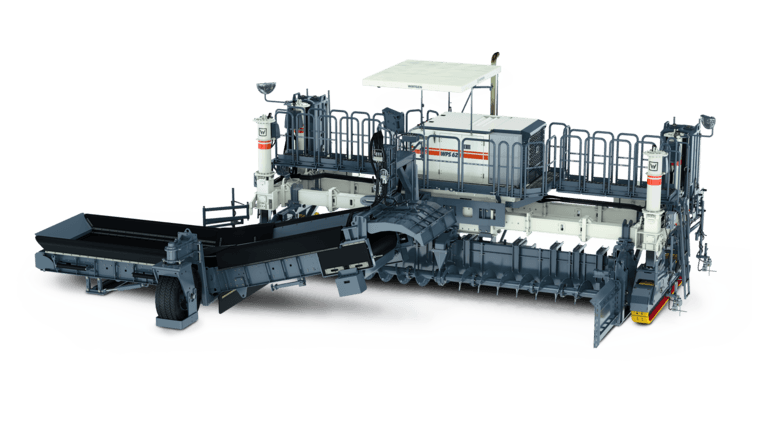

WIRTGEN WPS 62i
Side Feeder
Equipment Specifications
| SPECIFICATIONS - Operating weight CE (at paving width of 12 ft) | 74.957 lbs - 88.185 lbs |
|---|---|
| SPECIFICATIONS - Belt conveyor drive power | 94 kW |
| SPECIFICATIONS - Travel speed | 0 - 59 ft/min (0 - 18 m/min) |
| SPECIFICATIONS - Paving width | 12 ft - 24 ft |
| SPECIFICATIONS - Paving height | 0 - 20 in |
| SPECIFICATIONS - Number of crawler tracks | 2 |
Select a category to view specifications (or view all).
| SPECIFICATIONS - Rated power | 180 kW / 241 hp |
|---|---|
| SPECIFICATIONS - Exhaust emissions category | EU Stage 4/US EPA Tier 4f |
| SPECIFICATIONS - Displacement | 369.6 in³ |
| SPECIFICATIONS - Paving speed | 0?–?33 ft/min (0 – 10 m/h) |
High-performance side feeding and homogeneous spreading of concrete.
-
The cost-effective two-track placer / spreader is designed for high-performance concrete feeding at widths of 12 ft to 24 ft and thicknesses of 19.7 in (500 mm).
-
The machine concept with a hydraulically telescoping machine frame and concrete strikeoff unit makes the machine highly adaptable to any job site situation.
-
The powerful, fast folding feeder conveyor features an intelligent control concept and guarantees maximum concrete availability for the slipform paver following behind it.
-
The fully modular machine design comes standard-equipped with hydraulic quick-change couplings for easy conversion, rapid transport, and maximum machine availability.
-
The machine can be precisely controlled via stringline scanning or without a stringline using 3D applications.
