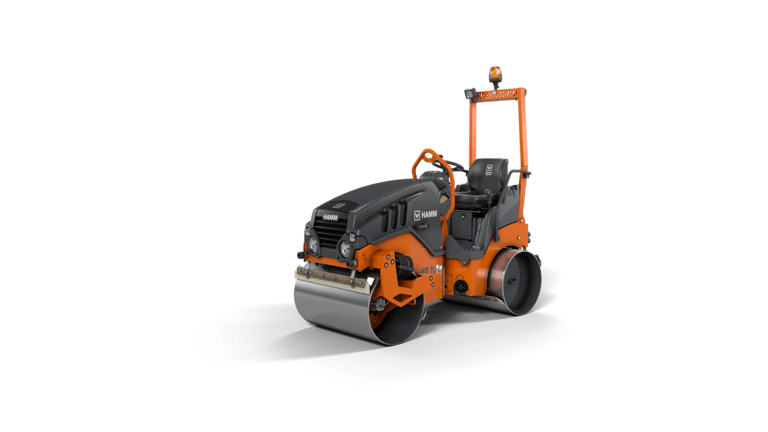

HAMM HD 10C VV
Series HD CompactLine
-
Simple, intuitive and language-neutral control
-
Simple transport, simple loading
-
Excellent view of drum edge, machine and construction site environment
-
Compact dimensions
-
Clear Side — one-sided drum mounting
Equipment Specifications
Select a category to view specifications (or view all).
| VIBRATION - Centrifugal force, front, II | 2,475 lbs |
|---|---|
| DRIVE - Climbing ability, with vibration | 30 |
| WEIGHTS - Static linear load, front | 45.9 lbs/in |
| WEIGHTS - French classific., data/class | 8,7/PV2 |
| WEIGHTS - Operating weight with ROPS | 3,704 lbs |
| DRIVE - Climbing ability, without vibration | 40 % |
| STEERING - Steering, type | Articulated steering |
| DRIVE - Speed, infinitely variable | 0,0 - 6,8 |
| WEIGHTS - Operating weight, max. | 3,925 lbs |
| DIESEL ENGINE - Power SAE J1349, HP | 21.6 hp |
| VIBRATION - Centrifugal force, rear, I | 3,825 lbs |
| DRUM DIMENSIONS - Drum width, rear | 39.4 in |
| BASIC DATA - Series | H263 |
| MACHINE DIMENSIONS - Total width | 42.5 in |
| STEERING - Oscillation angle +/- | 8 ° |
| DIESEL ENGINE - Power ISO 14396, HP | 21.9 HP |
| DRUM DIMENSIONS - Drum thickness, front | 0.5 in |
| DRUM DIMENSIONS - Drum diameter, rear | 24.4 in |
| BASIC DATA - Series | HD CompactLine |
| VIBRATION - Vibration frequency, front, II | 2,880 VPM |
| VIBRATION - Amplitude, rear, II | 0.015 in |
| MACHINE DIMENSIONS - Total height with ROPS | 87 in |
| MACHINE DIMENSIONS - Height, loading, min. | 62.2 in |
| VIBRATION - Vibration frequency, front, I | 3,660 VPM |
| BASIC DATA - Name | HD 10C VV |
| DIESEL ENGINE - Power SAE J1349, kW | 16.1 kW |
| SPRINKLER SYSTEM - Water tank, capacity | 18.5 gpm |
| SOUND LEVEL - Acoustic power LW(A), sticker | 105 |
| MACHINE DIMENSIONS - Max. working width | 41.9 in |
| MACHINE DIMENSIONS - Wheelbase | 61.4 in |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,600 RPM |
| SPRINKLER SYSTEM - Fuel tank, capacity | 8.7 gpm |
| MACHINE DIMENSIONS - Turning radius, inside | 83.9 in |
| DIESEL ENGINE - Type | D1105-E4B |
| DIESEL ENGINE - Exhaust gas after-treatment | - |
| SOUND LEVEL - Acoustic power LW(A), measured | 101 db(A) |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
| MACHINE DIMENSIONS - Total length | 90.4 in |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| DIESEL ENGINE - Number of cylinders | 3 |
| BASIC DATA - Exhaust emissions category | EU Stage V / EPA Tier 4 |
| BASIC DATA - Description | Tandem roller with two vibrating roller drums |
