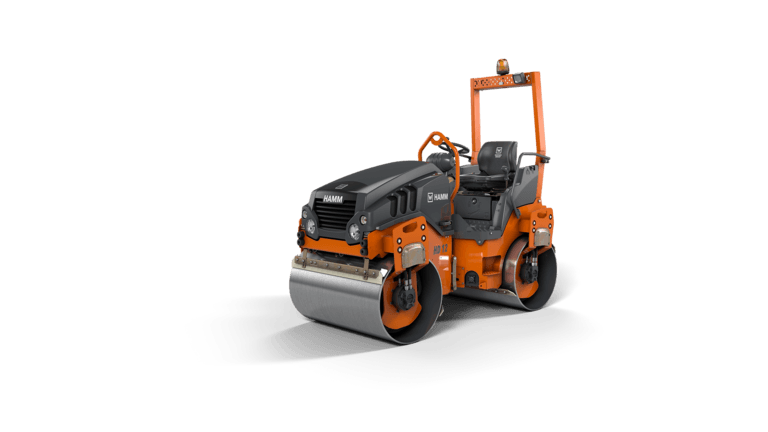

HAMM HD 12 VV
Series HD CompactLine
Highlights
-
Simple, intuitive and language-neutral control
-
Simple transport, simple loading
-
Ergonomic driver platform
-
Excellent view of drum edge, machine and construction site environment
-
Compact dimensions
Equipment Specifications
Select a category to view specifications (or view all).
| WEIGHTS - French classific., data/class | 11,3/PV3 |
|---|---|
| VIBRATION - Vibration frequency, front, I | 3,900 VPM |
| DRIVE - Climbing ability, with vibration | 30 |
| VIBRATION - Vibration frequency, front, II | 3,060 VPM |
| WEIGHTS - Operating weight with ROPS | 5,942 lbs |
| WEIGHTS - Static linear load, front | 62.2 lbs/in |
| WEIGHTS - Operating weight, max. | 7,519 lbs |
| STEERING - Steering, type | Articulated steering |
| DRIVE - Speed, infinitely variable | 6.3 |
| DRIVE - Climbing ability, without vibration | 40 % |
| DIESEL ENGINE - Power ISO 14396, kW | 18.5 kW |
| MACHINE DIMENSIONS - Height, loading, min. | 69 in |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| SOUND LEVEL - Acoustic power LW(A), sticker | 106 |
| DRUM DIMENSIONS - Drum thickness, rear | 0.6 in |
| DIESEL ENGINE - Power ISO 14396, rpm | 2,200 RPM |
| VIBRATION - Centrifugal force, rear, II | 5,175 lbs |
| DRUM DIMENSIONS - Drum width, rear | 47.2 in |
| MACHINE DIMENSIONS - Max. working width | 49.2 in |
| DIESEL ENGINE - Exhaust gas after-treatment | - |
| MACHINE DIMENSIONS - Total length | 99.6 in |
| BASIC DATA - Series | HD CompactLine |
| VIBRATION - Centrifugal force, front, I | 8,550 lbs |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
| DRUM DIMENSIONS - Drum diameter, rear | 28.3 in |
| DRUM DIMENSIONS - Track offset, left | 0 in |
| SOUND LEVEL - Acoustic power LW(A), measured | 104 db(A) |
| DIESEL ENGINE - Number of cylinders | 3 |
| BASIC DATA - Name | HD 12 VV |
| VIBRATION - Amplitude, rear, I | 0.018 in |
| STEERING - Oscillation angle +/- | 8 ° |
| DIESEL ENGINE - Emission standard | EU Stage V / EPA Tier 4 |
| BASIC DATA - Series | H230 |
| MACHINE DIMENSIONS - Turning radius, inside | 93.3 in |
| MACHINE DIMENSIONS - Total height with ROPS | 97.4 in |
| DIESEL ENGINE - Power SAE J1349, HP | 24.8 hp |
| BASIC DATA - Description | Tandem roller with two vibrating roller drums |
| SPRINKLER SYSTEM - Water tank, capacity | 47.6 gpm |
| DIESEL ENGINE - Type | D1703 |
| DRUM DIMENSIONS - Track offset, right | 2 in |
| DIESEL ENGINE - Power ISO 14396, HP | 25.2 HP |
| MACHINE DIMENSIONS - Wheelbase | 66.9 in |
| SPRINKLER SYSTEM - Fuel tank, capacity | 11.1 gpm |
| MACHINE DIMENSIONS - Curb clearance, rear | 22.4 in |
| MACHINE DIMENSIONS - Total width | 51.6 in |
