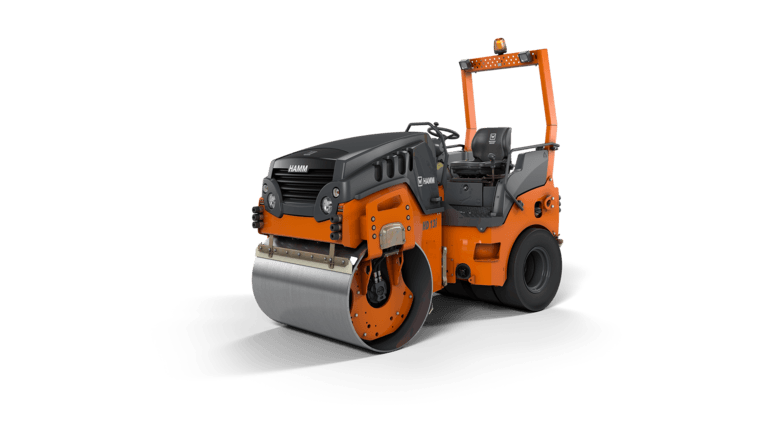

HAMM HD 13i VT
Series HD CompactLine
-
Simple, intuitive and language-neutral control
-
Simple transport, simple loading
-
Ergonomic driver platform
-
Excellent view of drum edge, machine and construction site environment
-
Compact dimensions
Equipment Specifications
Select a category to view specifications (or view all).
| DRIVE - Climbing ability, without vibration | 40 % |
|---|---|
| WEIGHTS - Operating weight with cab | 9,184 lbs |
| VIBRATION - Amplitude, front, I | 0.02 in |
| STEERING - Steering, type | Articulated steering |
| DRIVE - Climbing ability, with vibration | 30 |
| WEIGHTS - Static linear load, front | 91.3 lbs/in |
| VIBRATION - Centrifugal force, front, I | 14,400 lbs |
| VIBRATION - Amplitude, front, II | 0.012 in |
| WEIGHTS - Operating weight, max. | 11,268 lbs |
| WEIGHTS - Axle load, rear | 3,958 lbs |
| VIBRATION - Vibration frequency, front, II | 3,060 VPM |
| WEIGHTS - Basic weight no cab, without ROPS | 7,927 lbs |
| WEIGHTS - French classific., data/class | 10,8/VT0 |
| VIBRATION - Centrifugal force, front, II | 8,775 lbs |
| DRIVE - Speed, infinitely variable | 0,0 - 6,8 |
| VIBRATION - Vibration frequency, front, I | 3,600 VPM |
| WEIGHTS - Operating weight with ROPS | 8,633 lbs |
| WEIGHTS - Axle load, front | 4,675 lbs |
| BASIC DATA - Series | H285 |
| MACHINE DIMENSIONS - Ground clearance, center | 12 in |
| DRUM DIMENSIONS - Track offset, left | 0 in |
| MACHINE DIMENSIONS - Total height with cab | 107.1 in |
| DIESEL ENGINE - Number of cylinders | 4 |
| DRUM DIMENSIONS - Size of tires, rear | 10.5/80-16 |
| STEERING - Oscillation angle +/- | 8 ° |
| MACHINE DIMENSIONS - Max. working width | 52.7 in |
| DRUM DIMENSIONS - Drum diameter, front | 35.4 in |
| DIESEL ENGINE - Power ISO 14396, HP | 50.9 HP |
| MACHINE DIMENSIONS - Total height with ROPS | 102 in |
| MACHINE DIMENSIONS - Total width | 56.1 in |
| TANK CAPACITY/FILL CAPACITY - Fuel tank, capacity | 19.3 gpm |
| DRUM DIMENSIONS - Drum width, front | 51.2 in |
| BASIC DATA - Series | HD CompactLine |
| WHEEL DIMENSIONS - Width over tires, rear | 50.2 in |
| SOUND LEVEL - Acoustic power LW(A), sticker | 104 |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| SOUND LEVEL - Acoustic power LW(A), measured | 102 db(A) |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| DRUM DIMENSIONS - Track offset, right | 2 in |
| DIESEL ENGINE - Type | V2403-CR |
| BASIC DATA - Name | HD 13i VT |
| MACHINE DIMENSIONS - Height, loading, min. | 71.7 in |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
| BASIC DATA - Exhaust emissions category | EU Stage V / EPA Tier 4 |
| MACHINE DIMENSIONS - Wheelbase | 76.8 in |
| DIESEL ENGINE - Power SAE J1995, kW | 37.4 kW |
| DIESEL ENGINE - Power SAE J1995, HP | 50.1 hp |
| BASIC DATA - Description | Tandem roller with vibrating roller drum and set of tires |
| DIESEL ENGINE - Power SAE J1995, rpm | 2,700 RPM |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 75.3 gpm |
| SPRINKLER SYSTEM - Additive tank, capacity | 4.8 gpm |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-DPF |
| MACHINE DIMENSIONS - Total length | 116.7 in |
| MACHINE DIMENSIONS - Turning radius, inside | 105.9 in |
