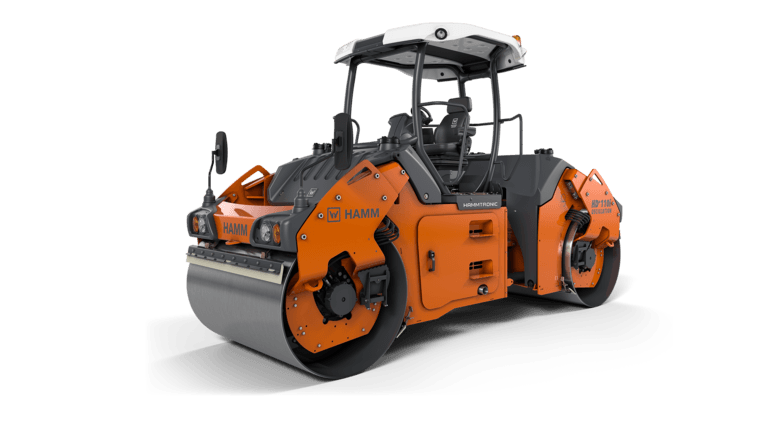

HAMM HD+ 110i VO
Series HD+
Highlights
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Track offset for comfortable starting and driving away and compacting at curbsides
-
Compaction with oscillation
| WEIGHTS - French classific., data/class | 28,5/VT2 |
|---|---|
| OSCILLATION - Oscillation frequency, rear | 2,340 VPM |
| DRIVE - Climbing ability, with vibration | 35 |
| OSCILLATION - Tangential amplitude, rear | 0.049 in |
| VIBRATION - Amplitude, front, I | 0.032 in |
| OSCILLATION - Oscillation force, rear | 28,800 lbs |
| WEIGHTS - Operating weight, max. | 27,871 lbs |
| VIBRATION - Vibration frequency, front, I | 2,520 VPM |
| VIBRATION - Amplitude, front, II | 0.019 in |
| VIBRATION - Centrifugal force, front, II | 22,275 lbs |
| DRIVE - Climbing ability, without vibration | 40 % |
| STEERING - Steering, type | Articulated steering |
| VIBRATION - Centrifugal force, front, I | 27,000 lbs |
| WEIGHTS - Operating weight with cab | 22,259 lbs |
| DRIVE - Speed, transportation gear | 0,0-6,2 |
| WEIGHTS - Static linear load, front | 177.5 lbs/in |
| VIBRATION - Vibration frequency, front, II | 3,000 VPM |
| WEIGHTS - Operating weight with ROPS | 21,885 lbs |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| DRIVE - Speed, working gear, I | 0,0-3,4 |
| BASIC DATA - Description | Tandem roller with vibrating roller drum and oscillation drum |
| BASIC DATA - Series | H242 |
| TANK CAPACITY/FILL CAPACITY - Fuel tank, capacity | 45.7 gpm |
| DRUM DIMENSIONS - Drum thickness, front | 0.9 in |
| BASIC DATA - Series | HD+ |
| DIESEL ENGINE - Type | TCD 3.6 L4 |
| MACHINE DIMENSIONS - Turning radius, inside | 238.2 in |
| MACHINE DIMENSIONS - Total length | 192.9 in |
| DIESEL ENGINE - Power SAE J1349, kW | 85 kW |
| DIESEL ENGINE - Power ISO 14396, HP | 115.6 HP |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-SCR |
| BASIC DATA - Name | HD+ 110i VO |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 200.8 gpm |
| TANK CAPACITY/FILL CAPACITY - AdBlue/DEF tank, content | 5.3 gpm |
| MACHINE DIMENSIONS - Total height with cab | 117.3 in |
| DIESEL ENGINE - Emission standard | EU Stage IV/EPA Tier 4 |
| SOUND LEVEL - Acoustic power LW(A), measured | 103 db(A) |
| MACHINE DIMENSIONS - Max. working width | 72.8 in |
| DRUM DIMENSIONS - Drum thickness, rear | 0.8 in |
| MACHINE DIMENSIONS - Wheelbase | 145.7 in |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| DRUM DIMENSIONS - Drum diameter, front | 47.2 in |
| DIESEL ENGINE - Power ISO 14396, rpm | 2,300 RPM |
| MACHINE DIMENSIONS - Curb clearance, left | 31.5 in |
| DIESEL ENGINE - Power SAE J1349, HP | 113.9 hp |
| MACHINE DIMENSIONS - Height, loading, min. | 84.6 in |
| SOUND LEVEL - Acoustic power LW(A), sticker | 107 |
| STEERING - Oscillation angle +/- | 10 ° |
| DIESEL ENGINE - Number of cylinders | 4 |
| DRUM DIMENSIONS - Drum type, rear | Smooth/non-split |
| DRUM DIMENSIONS - Drum width, rear | 66.1 in |
| MACHINE DIMENSIONS - Total width with cab | 70.9 in |
Featured Content
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement. This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases. The scope of application is enormous.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
