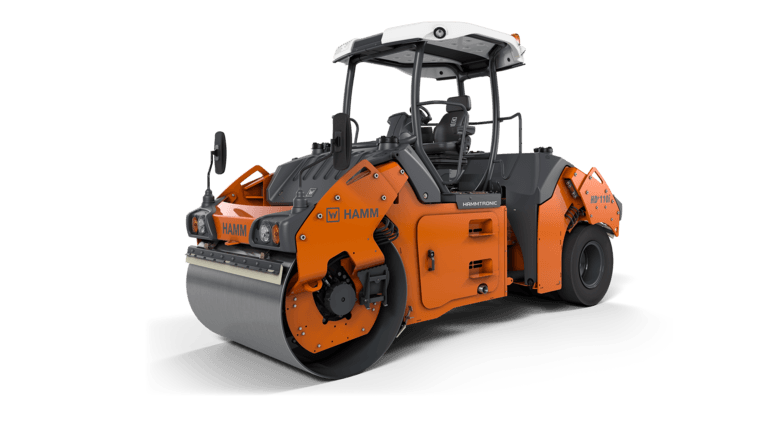

HAMM HD+ 110i VT
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Track offset for comfortable starting and driving away and compacting at curbsides
| STEERING - Steering, type | Articulated steering |
|---|---|
| DRIVE - Climbing ability, with vibration | 30 |
| WEIGHTS - Operating weight, max. | 26,791 lbs |
| WEIGHTS - French classific., data/class | 28,5.10,7/VX2.PLO |
| DRIVE - Speed, working gear, I | 0,0-3,4 |
| WEIGHTS - Static linear load, front | 177.5 lbs/in |
| VIBRATION - Amplitude, front, I | 0.032 in |
| VIBRATION - Vibration frequency, front, II | 3,000 VPM |
| VIBRATION - Amplitude, front, II | 0.019 in |
| WEIGHTS - Operating weight with ROPS | 20,782 lbs |
| DRIVE - Climbing ability, without vibration | 40 % |
| DRIVE - Speed, transportation gear | 0,0-6,2 |
| WEIGHTS - Operating weight with cab | 21,157 lbs |
| VIBRATION - Centrifugal force, front, II | 22,275 lbs |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| VIBRATION - Vibration frequency, front, I | 2,520 VPM |
| VIBRATION - Centrifugal force, front, I | 27,000 lbs |
| SOUND LEVEL - Acoustic power LW(A), sticker | 107 |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| DIESEL ENGINE - Type | TCD 3.6 L4 |
| DRUM DIMENSIONS - Drum thickness, front | 0.9 in |
| STEERING - Oscillation angle +/- | 10 ° |
| BASIC DATA - Name | HD+ 110i VT |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| MACHINE DIMENSIONS - Total height with cab | 118.5 in |
| DRUM DIMENSIONS - Drum diameter, front | 47.2 in |
| TANK CAPACITY/FILL CAPACITY - AdBlue/DEF tank, content | 5.3 gpm |
| DIESEL ENGINE - Power ISO 14396, kW | 85 kW |
| SOUND LEVEL - Acoustic power LW(A), measured | 105 db(A) |
| MACHINE DIMENSIONS - Height, loading, min. | 87.6 in |
| SPRINKLER SYSTEM - Additive tank, capacity | 5.8 gpm |
| MACHINE DIMENSIONS - Curb clearance, rear | 31.5 in |
| DIESEL ENGINE - Power ISO 14396, HP | 115.6 HP |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 200.8 gpm |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,300 RPM |
| MACHINE DIMENSIONS - Total length | 192.9 in |
| BASIC DATA - Series | HD+ |
| MACHINE DIMENSIONS - Turning radius, inside | 238.2 in |
| MACHINE DIMENSIONS - Wheelbase | 145.7 in |
| WHEEL DIMENSIONS - Width over tires, rear | 63.8 in |
| DRUM DIMENSIONS - Size of tires, rear | 11.00-20 |
| DRUM DIMENSIONS - Drum width, front | 66.1 in |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-SCR |
| DIESEL ENGINE - Number of cylinders | 4 |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
| BASIC DATA - Exhaust emissions category | EU Stage IV/EPA Tier 4 |
| BASIC DATA - Description | Tandem roller with vibrating roller drum and set of tires |
| TANK CAPACITY/FILL CAPACITY - Fuel tank, capacity | 45.7 gpm |
| DIESEL ENGINE - Power SAE J1349, HP | 113.9 hp |
| MACHINE DIMENSIONS - Max. working width | 71.7 in |
| MACHINE DIMENSIONS - Total width with cab | 70.9 in |
| BASIC DATA - Series | H242 |
Featured Content
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
