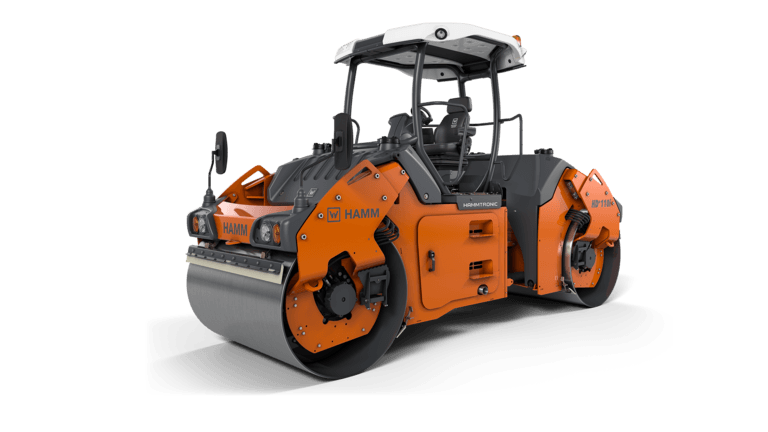

HAMM HD+ 110i VV
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Track offset for comfortable starting and driving away and compacting at curbsides
| VIBRATION - Amplitude, rear, II | 0.019 in |
|---|---|
| VIBRATION - Amplitude, front, I | 0.032 in |
| WEIGHTS - Operating weight with ROPS | 22,711 lbs |
| WEIGHTS - Operating weight with cab | 23,086 lbs |
| STEERING - Steering, type | Articulated steering |
| DRIVE - Speed, working gear, I | 0,0-3,4 |
| DRIVE - Speed, transportation gear | 0,0-6,2 |
| DRIVE - Climbing ability, without vibration | 40 % |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| WEIGHTS - French classific., data/class | 28,5/VT2 |
| VIBRATION - Centrifugal force, rear, II | 22,275 lbs |
| WEIGHTS - Static linear load, front | 177.5 lbs/in |
| WEIGHTS - Operating weight, max. | 28,709 lbs |
| DRIVE - Climbing ability, with vibration | 35 |
| MACHINE DIMENSIONS - Total height with cab | 117.3 in |
| SPRINKLER SYSTEM - Fuel tank, capacity | 45.7 gpm |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| VIBRATION - Vibration frequency, rear, II | 3,000 VPM |
| DIESEL ENGINE - Number of cylinders | 4 |
| VIBRATION - Centrifugal force, front, I | 27,000 lbs |
| DRUM DIMENSIONS - Drum diameter, front | 47.2 in |
| MACHINE DIMENSIONS - Max. working width | 72.8 in |
| TANK CAPACITY/FILL CAPACITY - AdBlue/DEF tank, content | 5.3 gpm |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-SCR |
| DIESEL ENGINE - Power SAE J1349, HP | 113.9 hp |
| DRUM DIMENSIONS - Drum type, rear | Smooth/non-split |
| MACHINE DIMENSIONS - Height, loading, min. | 84.6 in |
| BASIC DATA - Exhaust emissions category | EU Stage IV/EPA Tier 4 |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| MACHINE DIMENSIONS - Total length | 192.9 in |
| DIESEL ENGINE - Power ISO 14396, kW | 85 kW |
| SPRINKLER SYSTEM - Water tank, capacity | 200.8 gpm |
| SOUND LEVEL - Acoustic power LW(A), measured | 105 db(A) |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,300 RPM |
| DIESEL ENGINE - Power ISO 14396, HP | 115.6 HP |
| BASIC DATA - Description | Tandem roller with two vibrating roller drums |
| DRUM DIMENSIONS - Drum width, front | 66.1 in |
| DRUM DIMENSIONS - Drum thickness, rear | 0.9 in |
| MACHINE DIMENSIONS - Total width with cab | 70.9 in |
| DIESEL ENGINE - Type | TCD 3.6 L4 |
| MACHINE DIMENSIONS - Curb clearance, left | 31.5 in |
| VIBRATION - Vibration frequency, front, I | 2,520 VPM |
| MACHINE DIMENSIONS - Turning radius, inside | 238.2 in |
| STEERING - Oscillation angle +/- | 10 ° |
| MACHINE DIMENSIONS - Wheelbase | 145.7 in |
| BASIC DATA - Series | H242 |
| BASIC DATA - Series | HD+ |
| SOUND LEVEL - Acoustic power LW(A), sticker | 107 |
| BASIC DATA - Name | HD+ 110i VV |
Featured Content
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
