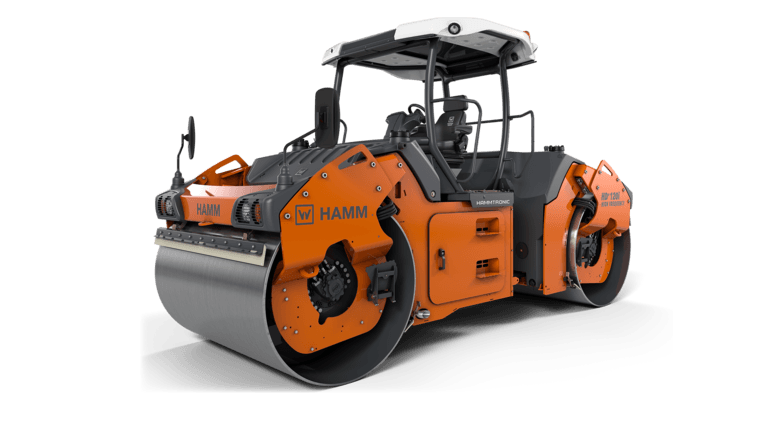

HAMM HD+ 120i VV-HF
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Track offset for comfortable starting and driving away and compacting at curbsides
| VIBRATION - Vibration frequency, rear, II | 4,020 VPM |
|---|---|
| WEIGHTS - Static linear load, front | 183.1 lbs/in |
| DRIVE - Climbing ability, without vibration | 40 % |
| WEIGHTS - Operating weight with cab | 28,500 lbs |
| WEIGHTS - Operating weight, max. | 30,297 lbs |
| VIBRATION - Centrifugal force, rear, I | 38,925 lbs |
| WEIGHTS - Operating weight with ROPS | 27,970 lbs |
| DRIVE - Climbing ability, with vibration | 40 |
| DRIVE - Speed, infinitely variable | 0,0-6,2 |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| STEERING - Steering, type | Articulated steering |
| WEIGHTS - French classific., data/class | 26,8/VT1 |
| DRUM DIMENSIONS - Drum width, rear | 78 in |
| MACHINE DIMENSIONS - Total height with cab | 117.3 in |
| TANK CAPACITY/FILL CAPACITY - AdBlue/DEF tank, content | 5.3 gpm |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
| DRUM DIMENSIONS - Drum thickness, rear | 0.7 in |
| MACHINE DIMENSIONS - Max. working width | 84.6 in |
| DIESEL ENGINE - Power ISO 14396, HP | 156.4 HP |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,300 RPM |
| VIBRATION - Amplitude, front, I | 0.028 in |
| BASIC DATA - Exhaust emissions category | EU Stage V / EPA Tier 4 |
| BASIC DATA - Description | Tandem roller with two vibrating roller drums |
| MACHINE DIMENSIONS - Total width with cab | 84.4 in |
| VIBRATION - Vibration frequency, front, I | 2,700 VPM |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-DPF-SCR |
| VIBRATION - Centrifugal force, front, II | 33,075 lbs |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| MACHINE DIMENSIONS - Total length | 208.7 in |
| SOUND LEVEL - Acoustic power LW(A), measured | 110 db(A) |
| DRUM DIMENSIONS - Drum diameter, rear | 55.1 in |
| DIESEL ENGINE - Type | TCD 4.1 L4 |
| VIBRATION - Amplitude, rear, II | 0.011 in |
| MACHINE DIMENSIONS - Curb clearance, rear | 35.4 in |
| SOUND LEVEL - Acoustic power LW(A), sticker | 109 |
| DIESEL ENGINE - Power SAE J1349, HP | 154.1 hp |
| BASIC DATA - Series | H274 |
| MACHINE DIMENSIONS - Turning radius, inside | 247.2 in |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| BASIC DATA - Series | HD+ |
| MACHINE DIMENSIONS - Height, loading, min. | 84.3 in |
| STEERING - Oscillation angle +/- | 10 ° |
| DIESEL ENGINE - Number of cylinders | 4 |
| TANK CAPACITY/FILL CAPACITY - Fuel tank, capacity | 68.7 gpm |
| BASIC DATA - Name | HD+ 120i VV-HF |
| MACHINE DIMENSIONS - Wheelbase | 153.5 in |
| SPRINKLER SYSTEM - Water tank, capacity | 302.5 gpm |
| DIESEL ENGINE - Power ISO 14396, kW | 115 kW |
Featured Content
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
