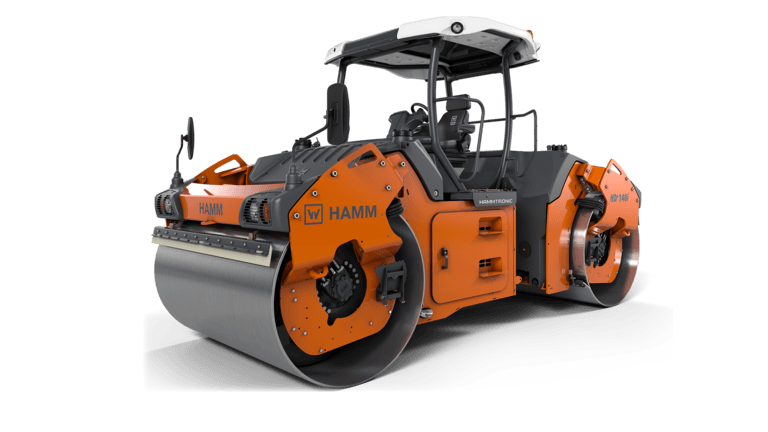

HAMM HD+ 140i VV
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Track offset for comfortable starting and driving away and compacting at curbsides
| DRIVE - Climbing ability, with vibration | 39 |
|---|---|
| WEIGHTS - Static linear load, front | 170.2 lbs/in |
| STEERING - Steering, type | Articulated steering |
| VIBRATION - Centrifugal force, front, II | 21,375 lbs |
| DRIVE - Climbing ability, without vibration | 39 % |
| WEIGHTS - Operating weight with ROPS | 28,103 lbs |
| VIBRATION - Amplitude, front, II | 0.013 in |
| VIBRATION - Vibration frequency, front, II | 3,000 VPM |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| VIBRATION - Vibration frequency, front, I | 2,400 VPM |
| WEIGHTS - French classific., data/class | 27,8/VT2 |
| DRIVE - Speed, infinitely variable | 0,0-6,2 |
| WEIGHTS - Operating weight with cab | 28,632 lbs |
| WEIGHTS - Operating weight, max. | 30,429 lbs |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 302.5 gpm |
| MACHINE DIMENSIONS - Turning radius, inside | 244.1 in |
| DIESEL ENGINE - Power SAE J1349, kW | 115 kW |
| DIESEL ENGINE - Power SAE J1349, HP | 154.1 hp |
| VIBRATION - Centrifugal force, rear, I | 40,500 lbs |
| BASIC DATA - Series | HD+ |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| MACHINE DIMENSIONS - Wheelbase | 153.5 in |
| MACHINE DIMENSIONS - Total height with cab | 117.3 in |
| DIESEL ENGINE - Power ISO 14396, HP | 156.4 HP |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| STEERING - Oscillation angle +/- | 10 ° |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| TANK CAPACITY/FILL CAPACITY - AdBlue/DEF tank, content | 5.3 gpm |
| SOUND LEVEL - Acoustic power LW(A), measured | 107 db(A) |
| SOUND LEVEL - Acoustic power LW(A), sticker | 109 |
| BASIC DATA - Description | Tandem roller with two vibrating roller drums |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,300 RPM |
| DIESEL ENGINE - Type | TCD 4.1 L4 |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-DPF-SCR |
| MACHINE DIMENSIONS - Total width with cab | 89 in |
| VIBRATION - Amplitude, front, I | 0.034 in |
| TANK CAPACITY/FILL CAPACITY - Fuel tank, capacity | 68.7 gpm |
| MACHINE DIMENSIONS - Max. working width | 90.9 in |
| DRUM DIMENSIONS - Drum width, front | 84.3 in |
| BASIC DATA - Name | HD+ 140i VV |
| MACHINE DIMENSIONS - Total length | 208.7 in |
| DRUM DIMENSIONS - Drum diameter, rear | 55.1 in |
| BASIC DATA - Series | H274 |
| DIESEL ENGINE - Emission standard | EU Stage V / EPA Tier 4 |
| DIESEL ENGINE - Number of cylinders | 4 |
| MACHINE DIMENSIONS - Curb clearance, left | 35.4 in |
Featured Content
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
