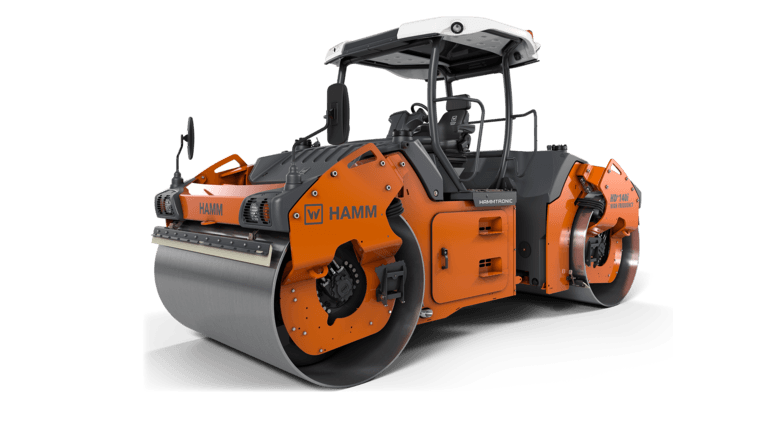

HAMM HD+ 140i VV-HF
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Track offset for comfortable starting and driving away and compacting at curbsides
| DRIVE - Regulation, infinitely variable | Hammtronic |
|---|---|
| DRIVE - Speed, infinitely variable | 0,0-6,2 |
| DRIVE - Climbing ability, with vibration | 39 |
| VIBRATION - Centrifugal force, front, II | 33,750 lbs |
| WEIGHTS - Operating weight, max. | 31,311 lbs |
| DRIVE - Climbing ability, without vibration | 39 % |
| STEERING - Steering, type | Articulated steering |
| WEIGHTS - Static linear load, front | 175.3 lbs/in |
| WEIGHTS - French classific., data/class | 24,8/VT1 |
| WEIGHTS - Operating weight with ROPS | 28,985 lbs |
| VIBRATION - Centrifugal force, rear, I | 40,500 lbs |
| WEIGHTS - Operating weight with cab | 29,514 lbs |
| BASIC DATA - Series | H274 |
| VIBRATION - Amplitude, front, II | 0.01 in |
| DIESEL ENGINE - Power ISO 14396, HP | 156.4 HP |
| DRUM DIMENSIONS - Drum type, rear | Smooth/non-split |
| MACHINE DIMENSIONS - Max. working width | 90.9 in |
| SOUND LEVEL - Acoustic power LW(A), measured | 110 db(A) |
| DIESEL ENGINE - Power ISO 14396, rpm | 2,300 RPM |
| DRUM DIMENSIONS - Drum diameter, front | 55.1 in |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| BASIC DATA - Exhaust emissions category | EU Stage V / EPA Tier 4 |
| DIESEL ENGINE - Number of cylinders | 4 |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 302.5 gpm |
| DRUM DIMENSIONS - Drum width, front | 84.3 in |
| BASIC DATA - Description | Tandem roller with two vibrating roller drums |
| MACHINE DIMENSIONS - Total height with cab | 117.3 in |
| MACHINE DIMENSIONS - Turning radius, inside | 244.1 in |
| TANK CAPACITY/FILL CAPACITY - AdBlue/DEF tank, content | 5.3 gpm |
| DIESEL ENGINE - Type | TCD 4.1 L4 |
| DIESEL ENGINE - Power SAE J1349, kW | 115 kW |
| MACHINE DIMENSIONS - Total width with cab | 89 in |
| VIBRATION - Amplitude, rear, I | 0.027 in |
| BASIC DATA - Name | HD+ 140i VV-HF |
| STEERING - Oscillation angle +/- | 10 ° |
| TANK CAPACITY/FILL CAPACITY - Fuel tank, capacity | 68.7 gpm |
| MACHINE DIMENSIONS - Wheelbase | 153.5 in |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| VIBRATION - Vibration frequency, rear, I | 2,700 VPM |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| BASIC DATA - Series | HD+ |
| DIESEL ENGINE - Power SAE J1349, HP | 154.1 hp |
| MACHINE DIMENSIONS - Curb clearance, left | 35.4 in |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-DPF-SCR |
| SOUND LEVEL - Acoustic power LW(A), sticker | 109 |
| MACHINE DIMENSIONS - Total length | 208.7 in |
| VIBRATION - Vibration frequency, front, II | 4,020 VPM |
Featured Content
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
