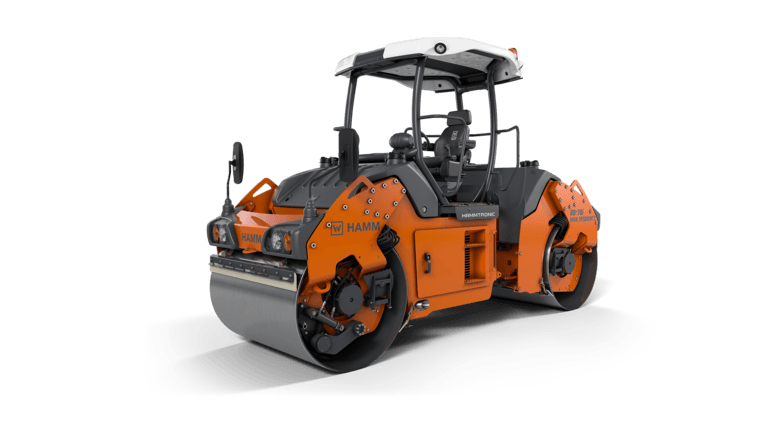

HAMM HD+ 70i VV-HF
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Simple, intuitive and language-neutral control
-
Excellent view of machine and construction site
-
Seat-operating unit can be moved and rotated
-
Track offset for comfortable starting and driving away and compacting at curbsides
| DRIVE - Regulation, infinitely variable | Hammtronic |
|---|---|
| DRIVE - Climbing ability, with vibration | 35 |
| VIBRATION - Centrifugal force, rear, I | 16,650 lbs |
| DRIVE - Speed, transportation gear | 0,0-7,5 |
| VIBRATION - Centrifugal force, rear, II | 20,700 lbs |
| WEIGHTS - Static linear load, front | 140 lbs/in |
| WEIGHTS - Operating weight with ROPS | 15,832 lbs |
| STEERING - Steering, type | Articulated steering |
| VIBRATION - Vibration frequency, front, II | 4,020 VPM |
| DRIVE - Speed, working gear, I | 0,0-3,7 |
| DRIVE - Climbing ability, without vibration | 40 % |
| VIBRATION - Amplitude, front, II | 0.014 in |
| WEIGHTS - Operating weight, max. | 21,609 lbs |
| WEIGHTS - Operating weight with cab | 16,207 lbs |
| WEIGHTS - French classific., data/class | 19,8/VT1 |
| SOUND LEVEL - Acoustic power LW(A), sticker | 106 |
| MACHINE DIMENSIONS - Curb clearance, left | 29.5 in |
| DIESEL ENGINE - Power ISO 14396, kW | 55.4 kW |
| MACHINE DIMENSIONS - Total width with cab | 70.5 in |
| MACHINE DIMENSIONS - Total height with cab | 113.8 in |
| BASIC DATA - Name | HD+ 70i VV-HF |
| MACHINE DIMENSIONS - Turning radius, inside | 166.5 in |
| MACHINE DIMENSIONS - Total length | 176.4 in |
| MACHINE DIMENSIONS - Height, loading, min. | 81.9 in |
| BASIC DATA - Description | Tandem roller with two vibrating roller drums |
| VIBRATION - Vibration frequency, rear, I | 2,700 VPM |
| STEERING - Oscillation angle +/- | 10 ° |
| DIESEL ENGINE - Type | TCD 2.9 L4 |
| DIESEL ENGINE - Power ISO 14396, rpm | 2,500 RPM |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC |
| BASIC DATA - Exhaust emissions category | EU Stage IIIB/EPA Tier 4 |
| MACHINE DIMENSIONS - Wheelbase | 131.5 in |
| VIBRATION - Amplitude, rear, I | 0.025 in |
| BASIC DATA - Series | H186 |
| DRUM DIMENSIONS - Drum type, rear | Smooth/non-split |
| SOUND LEVEL - Acoustic power LW(A), measured | 105 db(A) |
| BASIC DATA - Series | HD+ |
| TANK CAPACITY/FILL CAPACITY - Fuel tank, capacity | 31.7 gpm |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 184.9 gpm |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| DRUM DIMENSIONS - Drum width, front | 59.1 in |
| MACHINE DIMENSIONS - Max. working width | 64.4 in |
| DRUM DIMENSIONS - Drum diameter, rear | 44.9 in |
| DIESEL ENGINE - Power SAE J1349, HP | 74.2 hp |
| DRUM DIMENSIONS - Track offset, left | 5.3 in |
| DIESEL ENGINE - Power ISO 14396, HP | 75.3 HP |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| DIESEL ENGINE - Number of cylinders | 4 |
Featured Content
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
