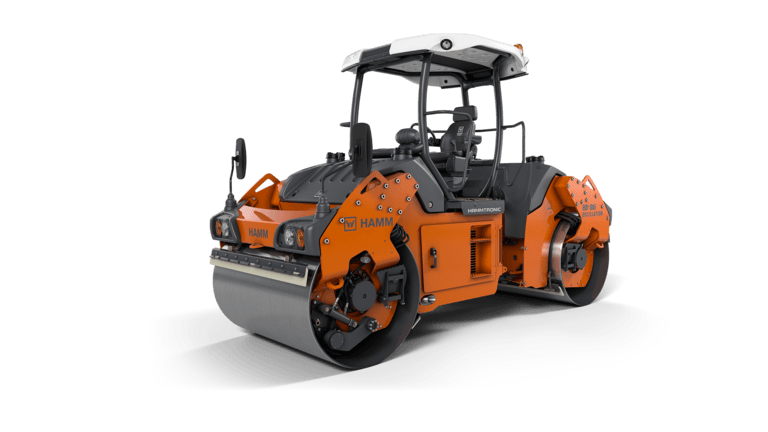

HAMM HD+ 80i VO
Series HD+
Highlights
-
Simple, intuitive and language-neutral control
-
Excellent view of machine and construction site
-
Seat-operating unit can be moved and rotated
-
Track offset for comfortable starting and driving away and compacting at curbsides
-
Compaction with oscillation
| OSCILLATION - Oscillation frequency, rear, II | 2,400 VPM |
|---|---|
| DRIVE - Regulation, infinitely variable | Hammtronic |
| DRIVE - Climbing ability, without vibration | 40 % |
| VIBRATION - Amplitude, front, II | 0.013 in |
| OSCILLATION - Oscillation force, rear, I | 20,700 lbs |
| VIBRATION - Centrifugal force, front, I | 19,575 lbs |
| WEIGHTS - French classific., data/class | 18,3/VT1 |
| WEIGHTS - Operating weight with ROPS | 16,802 lbs |
| DRIVE - Climbing ability, with vibration | 35 |
| OSCILLATION - Oscillation frequency, rear, I | 1,980 VPM |
| WEIGHTS - Operating weight with cab | 17,177 lbs |
| STEERING - Steering, type | Articulated steering |
| WEIGHTS - Static linear load, front | 131 lbs/in |
| VIBRATION - Vibration frequency, front, II | 3,480 VPM |
| VIBRATION - Amplitude, front, I | 0.024 in |
| DRIVE - Speed, working gear, I | 0,0-3,7 |
| VIBRATION - Vibration frequency, front, I | 2,880 VPM |
| VIBRATION - Centrifugal force, front, II | 15,525 lbs |
| OSCILLATION - Oscillation force, rear, II | 28,800 lbs |
| DRIVE - Speed, transportation gear | 0,0-7,5 |
| WEIGHTS - Operating weight, max. | 22,579 lbs |
| BASIC DATA - Description | Tandem roller with vibrating roller drum and oscillation drum |
| MACHINE DIMENSIONS - Wheelbase | 131.5 in |
| DIESEL ENGINE - Emission standard | EU Stage IIIB/EPA Tier 4 |
| SPRINKLER SYSTEM - Fuel tank, capacity | 31.7 gpm |
| MACHINE DIMENSIONS - Total length | 176.4 in |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
| SOUND LEVEL - Acoustic power LW(A), sticker | 106 |
| BASIC DATA - Series | H186 |
| DIESEL ENGINE - Power SAE J1349, HP | 74.2 hp |
| MACHINE DIMENSIONS - Total height with cab | 113.8 in |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 184.9 gpm |
| BASIC DATA - Name | HD+ 80i VO |
| SOUND LEVEL - Acoustic power LW(A), measured | 105 db(A) |
| DRUM DIMENSIONS - Track offset, left | 5.3 in |
| DRUM DIMENSIONS - Drum width, front | 66.1 in |
| MACHINE DIMENSIONS - Turning radius, inside | 163 in |
| OSCILLATION - Tangential amplitude, rear, II | 0.049 in |
| DIESEL ENGINE - Power ISO 14396, kW | 55.4 kW |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,500 RPM |
| DIESEL ENGINE - Number of cylinders | 4 |
| MACHINE DIMENSIONS - Total width with cab | 70.9 in |
| MACHINE DIMENSIONS - Height, loading, min. | 81.9 in |
| MACHINE DIMENSIONS - Curb clearance, left | 29.5 in |
| STEERING - Oscillation angle +/- | 10 ° |
| DIESEL ENGINE - Power ISO 14396, HP | 75.3 HP |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC |
| DRUM DIMENSIONS - Drum diameter, front | 44.9 in |
| DRUM DIMENSIONS - Drum thickness, rear | 0.8 in |
| MACHINE DIMENSIONS - Max. working width | 71.5 in |
| BASIC DATA - Series | HD+ |
| DIESEL ENGINE - Type | TCD 2.9 L4 |
Featured Content
In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement. This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases. The scope of application is enormous.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
