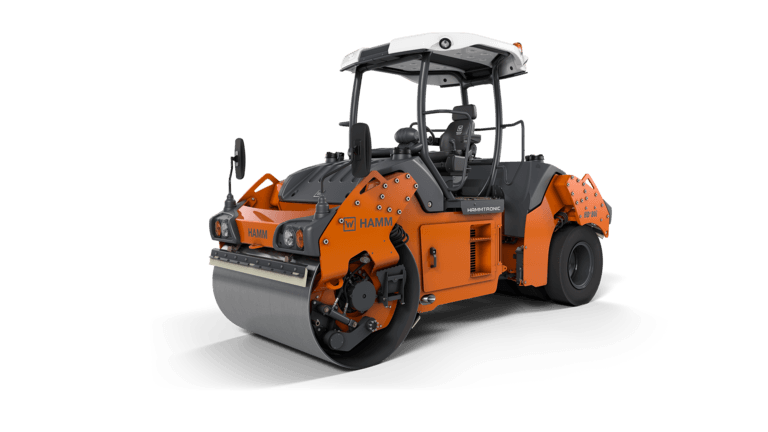

HAMM HD+ 80i VT
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Simple, intuitive and language-neutral control
-
Excellent view of machine and construction site
-
Seat-operating unit can be moved and rotated
-
Track offset for comfortable starting and driving away and compacting at curbsides
| DRIVE - Climbing ability, with vibration | 30 |
|---|---|
| WEIGHTS - French classific., data/class | 18,3.8,6/VX1.PLO |
| DRIVE - Climbing ability, without vibration | 40 % |
| VIBRATION - Vibration frequency, front, I | 2,880 VPM |
| DRIVE - Speed, working gear, I | 0,0-3,7 |
| DRIVE - Speed, transportation gear | 0,0-7,5 |
| WEIGHTS - Operating weight with ROPS | 15,898 lbs |
| VIBRATION - Amplitude, front, I | 0.024 in |
| WEIGHTS - Static linear load, front | 131 lbs/in |
| VIBRATION - Centrifugal force, front, II | 15,525 lbs |
| STEERING - Steering, type | Articulated steering |
| VIBRATION - Amplitude, front, II | 0.013 in |
| WEIGHTS - Operating weight with cab | 16,273 lbs |
| WEIGHTS - Operating weight, max. | 21,697 lbs |
| VIBRATION - Vibration frequency, front, II | 3,480 VPM |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| VIBRATION - Centrifugal force, front, I | 19,575 lbs |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
| MACHINE DIMENSIONS - Turning radius, inside | 163 in |
| TANK CAPACITY/FILL CAPACITY - Additive tank, capacity | 4.8 gpm |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| SOUND LEVEL - Acoustic power LW(A), measured | 105 db(A) |
| DIESEL ENGINE - Power SAE J1349, kW | 55.4 kW |
| DIESEL ENGINE - Type | TCD 2.9 L4 |
| SPRINKLER SYSTEM - Fuel tank, capacity | 31.7 gpm |
| MACHINE DIMENSIONS - Total height with cab | 113.8 in |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| SPRINKLER SYSTEM - Water tank, capacity | 184.9 gpm |
| WHEEL DIMENSIONS - Width over tires, rear | 63.5 in |
| DRUM DIMENSIONS - Track offset, left | 5.3 in |
| STEERING - Oscillation angle +/- | 10 ° |
| DRUM DIMENSIONS - Drum diameter, front | 44.9 in |
| BASIC DATA - Series | H186 |
| MACHINE DIMENSIONS - Wheelbase | 131.5 in |
| BASIC DATA - Series | HD+ |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,500 RPM |
| WHEEL DIMENSIONS - Size of tires, rear | 11.00-20 |
| MACHINE DIMENSIONS - Total width with cab | 70.9 in |
| DIESEL ENGINE - Power SAE J1349, HP | 74.2 hp |
| MACHINE DIMENSIONS - Height, loading, min. | 81.9 in |
| MACHINE DIMENSIONS - Curb clearance, left | 29.5 in |
| MACHINE DIMENSIONS - Total length | 176.4 in |
| BASIC DATA - Name | HD+ 80i VT |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC |
| DIESEL ENGINE - Power ISO 14396, HP | 75.3 HP |
| DIESEL ENGINE - Emission standard | EU Stage IIIB/EPA Tier 4 |
| SOUND LEVEL - Acoustic power LW(A), sticker | 106 |
| BASIC DATA - Description | Tandem roller with vibrating roller drum and set of tires |
| DIESEL ENGINE - Number of cylinders | 4 |
| MACHINE DIMENSIONS - Max. working width | 70.1 in |
| DRUM DIMENSIONS - Drum width, front | 66.1 in |
Featured Content
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
