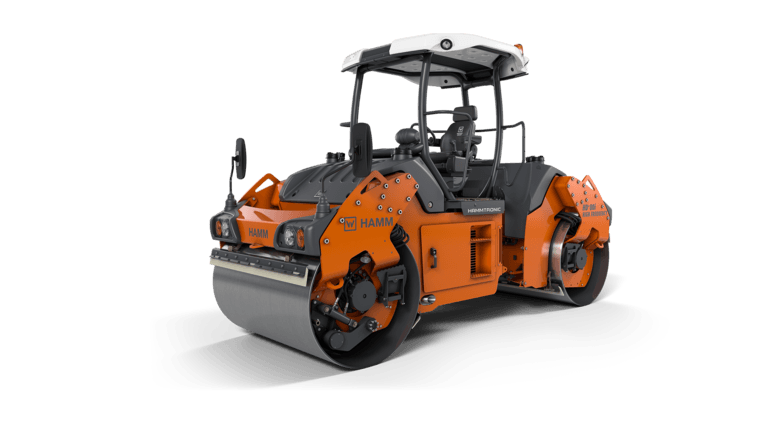

HAMM HD+ 80i VV-HF
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Simple, intuitive and language-neutral control
-
Excellent view of machine and construction site
-
Seat-operating unit can be moved and rotated
-
Track offset for comfortable starting and driving away and compacting at curbsides
| WEIGHTS - Operating weight with cab | 17,001 lbs |
|---|---|
| WEIGHTS - Operating weight, max. | 22,403 lbs |
| VIBRATION - Centrifugal force, front, II | 20,700 lbs |
| WEIGHTS - French classific., data/class | 18,3/VT1 |
| DRIVE - Speed, working gear, I | 0,0-3,7 |
| WEIGHTS - Operating weight with ROPS | 16,626 lbs |
| DRIVE - Climbing ability, with vibration | 35 |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| WEIGHTS - Static linear load, front | 131 lbs/in |
| STEERING - Steering, type | Articulated steering |
| VIBRATION - Vibration frequency, rear, II | 4,020 VPM |
| DRIVE - Speed, transportation gear | 0,0-7,5 |
| DRIVE - Climbing ability, without vibration | 40 % |
| MACHINE DIMENSIONS - Total width with cab | 70.9 in |
| MACHINE DIMENSIONS - Total height with cab | 113.8 in |
| DRUM DIMENSIONS - Drum type, rear | Smooth/non-split |
| VIBRATION - Centrifugal force, front, I | 17,325 lbs |
| DIESEL ENGINE - Power ISO 14396, kW | 55.4 kW |
| SOUND LEVEL - Acoustic power LW(A), sticker | 106 |
| BASIC DATA - Name | HD+ 80i VV-HF |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,500 RPM |
| DIESEL ENGINE - Number of cylinders | 4 |
| DIESEL ENGINE - Power SAE J1349, HP | 74.2 hp |
| SOUND LEVEL - Acoustic power LW(A), measured | 105 db(A) |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| VIBRATION - Amplitude, rear, II | 0.013 in |
| TANK CAPACITY/FILL CAPACITY - Fuel tank, capacity | 31.7 gpm |
| DRUM DIMENSIONS - Drum diameter, rear | 44.9 in |
| MACHINE DIMENSIONS - Total length | 176.4 in |
| BASIC DATA - Series | H186 |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC |
| DRUM DIMENSIONS - Track offset, left | 5.3 in |
| MACHINE DIMENSIONS - Curb clearance, left | 29.5 in |
| MACHINE DIMENSIONS - Turning radius, inside | 163 in |
| BASIC DATA - Exhaust emissions category | EU Stage IIIB/EPA Tier 4 |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| MACHINE DIMENSIONS - Wheelbase | 131.5 in |
| DIESEL ENGINE - Type | TCD 2.9 L4 |
| MACHINE DIMENSIONS - Height, loading, min. | 81.9 in |
| VIBRATION - Vibration frequency, rear, I | 2,700 VPM |
| BASIC DATA - Description | Tandem roller with two vibrating roller drums |
| VIBRATION - Amplitude, front, I | 0.024 in |
| DRUM DIMENSIONS - Drum width, front | 66.1 in |
| STEERING - Oscillation angle +/- | 10 ° |
| MACHINE DIMENSIONS - Max. working width | 71.5 in |
| DIESEL ENGINE - Power ISO 14396, HP | 75.3 HP |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 184.9 gpm |
| BASIC DATA - Series | HD+ |
Featured Content
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
