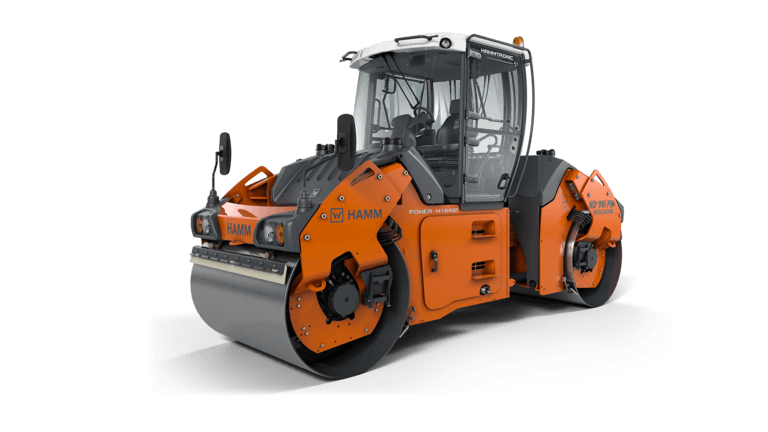

HAMM HD+ 90i PH VO
Series HD+
Highlights
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Hydraulic hybrid drive
-
Compaction with oscillation
| WEIGHTS - Operating weight with cab | 20,330 lbs |
|---|---|
| VIBRATION - Vibration frequency, front, I | 2,520 VPM |
| WEIGHTS - Static linear load, front | 155.7 lbs/in |
| VIBRATION - Amplitude, front, I | 0.024 in |
| VIBRATION - Amplitude, front, II | 0.013 in |
| OSCILLATION - Oscillation frequency, rear | 2,340 VPM |
| WEIGHTS - French classific., data/class | 21,9/VT1 |
| WEIGHTS - Operating weight, max. | 25,931 lbs |
| OSCILLATION - Tangential amplitude, rear | 0.049 in |
| OSCILLATION - Oscillation force, rear | 28,800 lbs |
| DRIVE - Speed, transportation gear | 0,0-7,5 |
| DRIVE - Climbing ability, with vibration | - |
| WEIGHTS - Operating weight with ROPS | 19,955 lbs |
| VIBRATION - Centrifugal force, front, I | 16,875 lbs |
| DRIVE - Speed, working gear, I | 0,0-3,7 |
| STEERING - Steering, type | Articulated steering |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| VIBRATION - Centrifugal force, front, II | 13,500 lbs |
| VIBRATION - Vibration frequency, front, II | 3,000 VPM |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| DIESEL ENGINE - Power ISO 14396, kW | 55.4 kW |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-DPF |
| DRUM DIMENSIONS - Drum thickness, rear | 0.8 in |
| BASIC DATA - Series | H276 |
| MACHINE DIMENSIONS - Total length | 189 in |
| MACHINE DIMENSIONS - Wheelbase | 141.7 in |
| BASIC DATA - Exhaust emissions category | EU Stage V / EPA Tier 4 |
| STEERING - Oscillation angle +/- | 10 ° |
| MACHINE DIMENSIONS - Total height with cab | 117.3 in |
| DRUM DIMENSIONS - Drum width, rear | 66.1 in |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 200.8 gpm |
| MACHINE DIMENSIONS - Height, loading, min. | 84.6 in |
| SPRINKLER SYSTEM - Fuel tank, capacity | 45.7 gpm |
| DIESEL ENGINE - Power SAE J1349, HP | 74.2 hp |
| MACHINE DIMENSIONS - Curb clearance, rear | 31.5 in |
| BASIC DATA - Name | HD+ 90i PH VO |
| DRUM DIMENSIONS - Drum type, rear | Smooth/non-split |
| BASIC DATA - Description | Tandem roller with vibrating roller drum and oscillation drum |
| DRUM DIMENSIONS - Drum diameter, rear | 47.2 in |
| SOUND LEVEL - Acoustic power LW(A), sticker | 106 |
| MACHINE DIMENSIONS - Total width with cab | 70.9 in |
| DIESEL ENGINE - Power ISO 14396, rpm | 2,300 RPM |
| DIESEL ENGINE - Power ISO 14396, HP | 75.3 HP |
| SOUND LEVEL - Acoustic power LW(A), measured | 103 db(A) |
| DIESEL ENGINE - Type | TCD 2.9 L4 |
| MACHINE DIMENSIONS - Max. working width | 72.8 in |
| MACHINE DIMENSIONS - Turning radius, inside | 232.3 in |
| BASIC DATA - Series | HD+ |
Featured Content
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
With the 9 t HD+ 90i PH tandem roller (EPA Tier 4/EU Stage V), HAMM combines a traditional combustion engine with a hydraulic accumulator. While the diesel unit provides the basic load, the hydraulic accumulator is able to cover peak loads, such as start-up or activating vibration/oscillation, by providing an additional 20 kW of power at short notice. After this maximal load has been generated, the hydraulic accumulator is recharged via a pump. In this way, the machine provides full compaction power while simultaneously saving fuel.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
