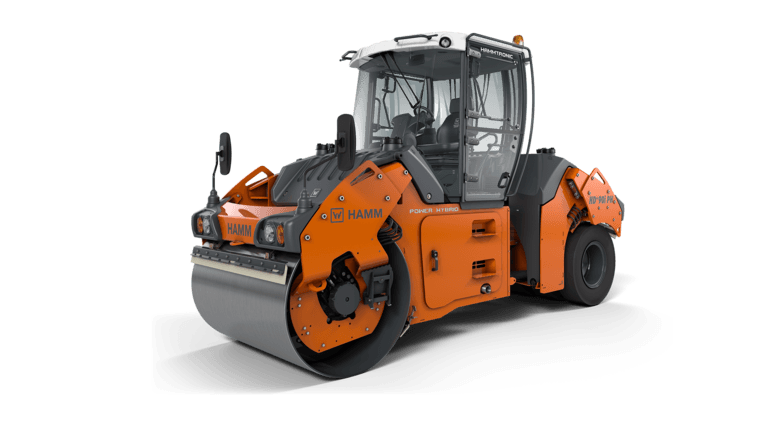

HAMM HD+ 90i PH VT
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Hydraulic hybrid drive
| STEERING - Steering, type | Articulated steering |
|---|---|
| VIBRATION - Vibration frequency, front, I | 2,520 VPM |
| VIBRATION - Amplitude, front, I | 0.024 in |
| DRIVE - Speed, transportation gear | 0,0-7,5 |
| VIBRATION - Amplitude, front, II | 0.013 in |
| WEIGHTS - Operating weight with cab | 19,228 lbs |
| DRIVE - Regulation, infinitely variable | Hammtronic |
| WEIGHTS - Operating weight, max. | 24,872 lbs |
| WEIGHTS - French classific., data/class | 21,9.10,1/VX1.PLO |
| WEIGHTS - Operating weight with ROPS | 18,853 lbs |
| WEIGHTS - Static linear load, front | 155.7 lbs/in |
| DRIVE - Speed, working gear, I | 0,0-3,7 |
| VIBRATION - Centrifugal force, front, II | 13,500 lbs |
| DRIVE - Climbing ability, with vibration | - |
| VIBRATION - Vibration frequency, front, II | 3,000 VPM |
| VIBRATION - Centrifugal force, front, I | 16,875 lbs |
| BASIC DATA - Series | H276 |
| MACHINE DIMENSIONS - Total height with cab | 118.5 in |
| SOUND LEVEL - Acoustic power LW(A), sticker | 106 |
| SPRINKLER SYSTEM - Additive tank, capacity | 5.8 gpm |
| DIESEL ENGINE - Power SAE J1349, kW | 55.4 kW |
| MACHINE DIMENSIONS - Curb clearance, rear | 31.5 in |
| DRUM DIMENSIONS - Drum width, front | 66.1 in |
| STEERING - Oscillation angle +/- | 10 ° |
| BASIC DATA - Exhaust emissions category | EU Stage V / EPA Tier 4 |
| DIESEL ENGINE - Power SAE J1349, HP | 74.2 hp |
| SPRINKLER SYSTEM - Fuel tank, capacity | 45.7 gpm |
| BASIC DATA - Description | Tandem roller with vibrating roller drum and set of tires |
| WHEEL DIMENSIONS - Number of tires, rear | 4 |
| MACHINE DIMENSIONS - Total length | 189 in |
| DIESEL ENGINE - Power ISO 14396, HP | 75.3 HP |
| DRUM DIMENSIONS - Drum diameter, front | 47.2 in |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-DPF |
| WHEEL DIMENSIONS - Width over tires, rear | 63.8 in |
| DIESEL ENGINE - Type | TCD 2.9 L4 |
| MACHINE DIMENSIONS - Max. working width | 71.7 in |
| BASIC DATA - Name | HD+ 90i PH VT |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| MACHINE DIMENSIONS - Turning radius, inside | 232.3 in |
| SOUND LEVEL - Acoustic power LW(A), measured | 103 db(A) |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,300 RPM |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
| BASIC DATA - Series | HD+ |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| MACHINE DIMENSIONS - Total width with cab | 70.9 in |
| TANK CAPACITY/FILL CAPACITY - Water tank, capacity | 200.8 gpm |
| DRUM DIMENSIONS - Size of tires, rear | 11.00-20 |
| MACHINE DIMENSIONS - Wheelbase | 141.7 in |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| MACHINE DIMENSIONS - Height, loading, min. | 87.6 in |
Featured Content
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
With the 9 t HD+ 90i PH tandem roller (EPA Tier 4/EU Stage V), HAMM combines a traditional combustion engine with a hydraulic accumulator. While the diesel unit provides the basic load, the hydraulic accumulator is able to cover peak loads, such as start-up or activating vibration/oscillation, by providing an additional 20 kW of power at short notice. After this maximal load has been generated, the hydraulic accumulator is recharged via a pump. In this way, the machine provides full compaction power while simultaneously saving fuel.
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
