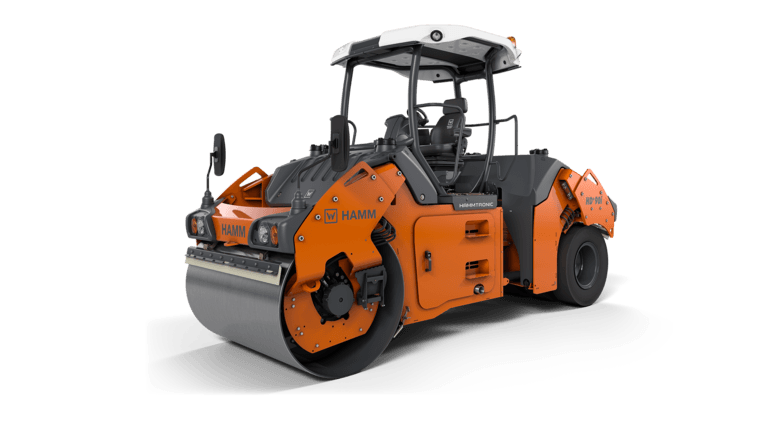

HAMM HD+ 90i VT
Series HD+
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Track offset for comfortable starting and driving away and compacting at curbsides
| DRIVE - Regulation, infinitely variable | Hammtronic |
|---|---|
| STEERING - Steering, type | Articulated steering |
| WEIGHTS - Operating weight with cab | 19,448 lbs |
| VIBRATION - Amplitude, front, I | 0.024 in |
| WEIGHTS - French classific., data/class | 22,1.10,3/VX1.PLO |
| DRIVE - Speed, transportation gear | 0,0-7,5 |
| VIBRATION - Amplitude, front, II | 0.013 in |
| WEIGHTS - Operating weight with ROPS | 19,073 lbs |
| DRIVE - Climbing ability, without vibration | 40 % |
| VIBRATION - Vibration frequency, front, II | 3,000 VPM |
| DRIVE - Speed, working gear, I | 0,0-4,0 |
| WEIGHTS - Static linear load, front | 157.4 lbs/in |
| WEIGHTS - Operating weight, max. | 25,093 lbs |
| VIBRATION - Centrifugal force, front, II | 13,500 lbs |
| DRIVE - Climbing ability, with vibration | 30 |
| VIBRATION - Centrifugal force, front, I | 16,875 lbs |
| VIBRATION - Vibration frequency, front, I | 2,520 VPM |
| TANK CAPACITY/FILL CAPACITY - Additive tank, capacity | 5.8 gpm |
| DIESEL ENGINE - Power SAE J1349, kW | 85 kW |
| DIESEL ENGINE - Type | TCD 3.6 L4 |
| DIESEL ENGINE - Power SAE J1349, HP | 113.9 hp |
| DRUM DIMENSIONS - Track offset, left | 6.7 in |
| BASIC DATA - Series | H242 |
| MACHINE DIMENSIONS - Total height with cab | 118.5 in |
| MACHINE DIMENSIONS - Height, loading, min. | 87.6 in |
| DRUM DIMENSIONS - Drum width, front | 66.1 in |
| DRUM DIMENSIONS - Drum thickness, front | 0.7 in |
| DIESEL ENGINE - Power SAE J1349, rpm | 2,300 RPM |
| MACHINE DIMENSIONS - Turning radius, inside | 238.2 in |
| DRUM DIMENSIONS - Drum diameter, front | 47.2 in |
| MACHINE DIMENSIONS - Max. working width | 71.7 in |
| SOUND LEVEL - Acoustic power LW(A), measured | 105 db(A) |
| MACHINE DIMENSIONS - Total width with cab | 70.9 in |
| MACHINE DIMENSIONS - Wheelbase | 145.7 in |
| MACHINE DIMENSIONS - Total length | 192.9 in |
| DIESEL ENGINE - Exhaust gas after-treatment | DOC-SCR |
| WHEEL DIMENSIONS - Number of tires, rear | 4 |
| WHEEL DIMENSIONS - Width over tires, rear | 63.8 in |
| STEERING - Oscillation angle +/- | 10 ° |
| SOUND LEVEL - Acoustic power LW(A), sticker | 107 |
| TANK CAPACITY/FILL CAPACITY - AdBlue/DEF tank, content | 5.3 gpm |
| SPRINKLER SYSTEM - Water tank, capacity | 200.8 gpm |
| MACHINE DIMENSIONS - Curb clearance, rear | 31.5 in |
| SPRINKLER SYSTEM - Fuel tank, capacity | 45.7 gpm |
| BASIC DATA - Description | Tandem roller with vibrating roller drum and set of tires |
| DIESEL ENGINE - Power ISO 14396, HP | 115.6 HP |
| WHEEL DIMENSIONS - Size of tires, rear | 11.00-20 |
| BASIC DATA - Series | HD+ |
| BASIC DATA - Exhaust emissions category | EU Stage IV/EPA Tier 4 |
| BASIC DATA - Name | HD+ 90i VT |
| SPRINKLER SYSTEM - Water sprinkler, type | Pressure |
| DRUM DIMENSIONS - Drum type, front | Smooth/non-split |
Featured Content
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver’s platform then visualizes the entire data package in the form of a real-time “compaction map” and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
