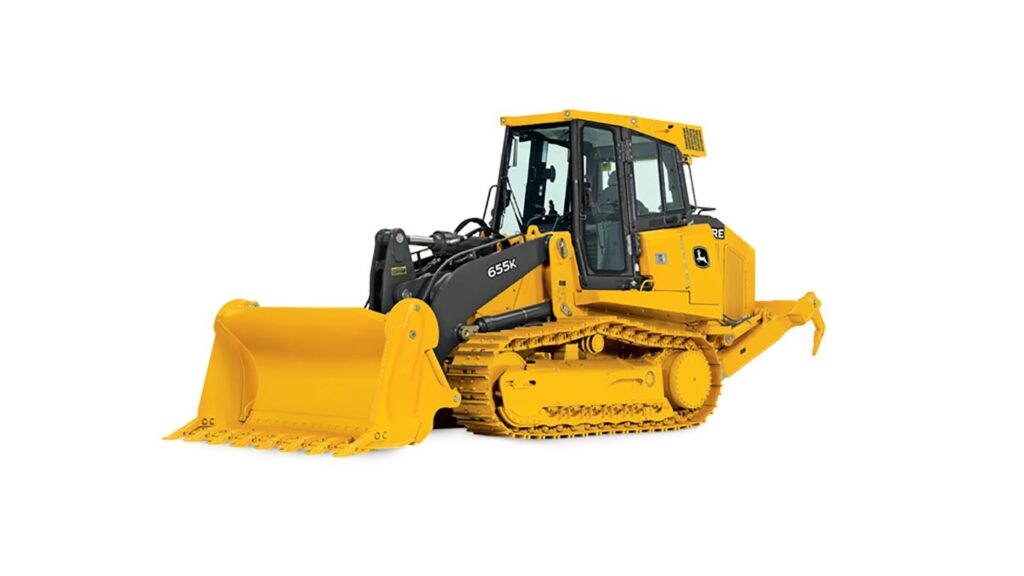

JOHN DEERE 655K Crawler Loader
Construction
- Net Power: 145 hp (110 kW) @ 1,800 rpm
- Operating Weight: 40,614 lb.(18 422 kg)
- Heaped Capacity: 2.4 cu. yd. (1.9 m³)
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | PowerTech PVX 6068 |
| DRIVELINE - Emission Rating | Interim Tier 4 |
| DRIVELINE - Displacement, ltr (Inches�) | 6.8 (41) |
| DRIVELINE - Rated Speed, rpm | 1800 |
| DRIVELINE - Engine Output - Net, kW (hp) | 110 (145) |
| DRIVELINE - Transmission type | Hydrostatic |
| DRIVELINE - Final drive type | In-line Drive Motor |
| DRIVELINE - Track rollers per side - std | 6 |
| DRIVELINE - Track shoe pitch, mm (inches) | 190 (7.5) |
| DRIVELINE - Track shoe width, mm (inches) | 508 (20) |
| DRIVELINE - Ground Contact Area, cm� (Inches�) | 24622 (3816) |
| DRIVELINE - Track shoes per side - std | 38 |
| DIMENSIONS - Overall length, mm (ft/in) | 6735 (22 ft 1 in) |
| DIMENSIONS - Max. height, mm (ft/in) | 3120 (10 ft 3 in) |
| DIMENSIONS - Track length on ground, mm (inches) | 2414 (95) |
| DIMENSIONS - Ground clearance, mm (inches) | 395 (15.6) |
| DIMENSIONS - Track gauge - standard, mm (ft/in) | 1740 (5 ft 9 in) |
| DIMENSIONS - Shovel 1 width, mm (ft/in) | 2470 (8 ft 1 in) |
| DIMENSIONS - Shovel 1 dump height 45� max, mm (ft/in) | 2665 (8 ft 9 in) |
| DIMENSIONS - Bucket pin height, mm (ft/in) | 3710 (12 ft 2 in) |
| DIMENSIONS - Bucket reach - max, mm (ft/in) | 1036 (3 ft 5 in) |
| DIMENSIONS - Digging depth, mm (inches) | 152 (6) |
| DIMENSIONS - Steering clutches and brakes | Yes - Hydrostatic |
| CAPACITIES - Fuel tank capacity, ltr (gallons (US)) | 263 (69.5) |
| CAPACITIES - Implement hydraulic tank, ltr (gallons (US)) | 121 (32) |
| CAPACITIES - Shovel 1 capacity, m� (yd�) | 1.9 (2.4) |
| PERFORMANCE - Ground bearing pressure - standard, kPa (PSI) | 73.7 (10.7) - GP Bucket |
| PERFORMANCE - Static tipping load shovel 1, kg (lbs) | 12443 (27432) |
| PERFORMANCE - Breakout force - max, kN (lbf) | 148 (33271) |
| PERFORMANCE - Voltage, V | 24 |
| PERFORMANCE - Alternator output, Amp | 100 |
| PERFORMANCE - Pump type | Piston Pump - Load Sensed |
| PERFORMANCE - Pump flow, lt/min (gallons (US) / min) | 189 (50) |
| PERFORMANCE - Relief pressure, kPa (PSI) | 26028 (3775) |
| WEIGHTS - Operating weight std, kg (lbs) | 18422 (40614) |
Featured List
- Net Power: 145 hp (110 kW)
- Operating Weight: 40,614 lb.(18,422 kg)
- Heaped Capacity: 2.4 cu. yd. (1.9 m³)
- Breakout Force: 33,271 lbf. (148 kN)
- Dump Height: 2,665 mm (8 ft. 9 in.)
Featured Content
Our IT4/EU Stage IIIB engines employ cooled exhaust gas recirculation (EGR) for reducing NOX, and a diesel particulate filter and diesel oxidation catalyst to reduce particulate matter.
Quad-Cool design isolates coolers from engine heat for increased efficiency and durability, and keeps them well protected behind the heavy-duty grille and fan.
Hydraulic-driven variable-speed fan runs only as needed, reducing noise and fuel consumption.
Separate, sealed hydraulic and hydrostatic systems with common fluid and filter codes eliminate cross contamination.
In-cylinder sensors enable better control and help speed cycles in repetitive applications.
Counter-rotating tracks and variable speed control increases productivity.
Choose joystick, multiple-lever hydraulic controls, or V-pattern transmission lever.
Large service doors open wide, and same-side daily checkpoints are conveniently grouped for ground-level access.
Operator station tilts a full 53 degrees in minutes, for wide-open component access.
Total Machine Control (TMC) allows you to customize operating characteristics and response, for superb, one-of-a-kind control. TMC can also be used to monitor machine readings such as mileage and hours.
Heavy-duty sealed and lubed undercarriage is standard, with SC-2 extended-life optional.
