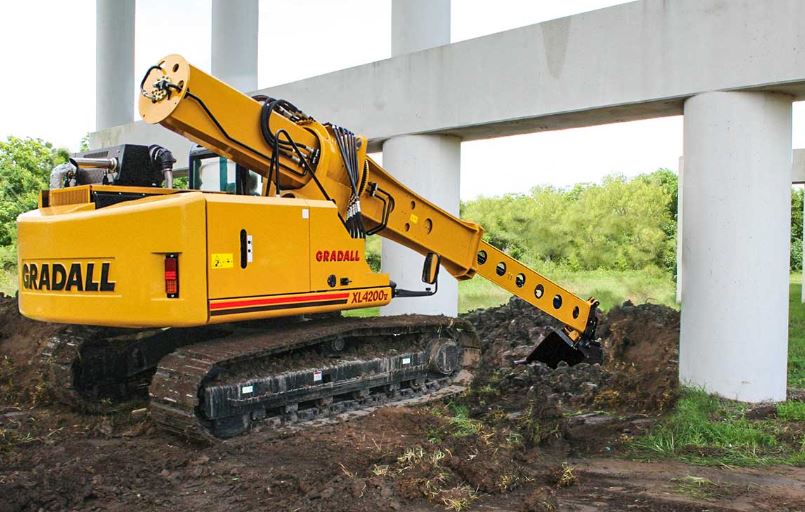

Gradall XL 4200 V

XL 4200 V

Gradall
Crawler Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Dual range high torque piston motor powers each track.

Low profile for work under bridges, trees and in tunnels

Two electronic foot pedals with handles reposition carrier, using toggle switch on arm pod to select from two crawler speed ranges

High performance, high reliability 24-volt electrical system

Stable digging platform for work in any direction, without need to stop and lower outriggers

Specifications
Documents

Engine Standard: Volvo TAD571 VE Tier 4f 5.1L
Max. Loading Height: 16' 3" (5.0 m)
Max. Radius at Groundline: 30' 6" (9.3 m)
HP @ RPM: 173/2,200
Operating Weight: 46,862 lb (21,256 kg)
Ground Clearance: 18" (454 mm)
Max Digging Depth: 22' 0" (6.7 m)
Max. Lift Capacity: 12,590 lb (5,710 kg)
Swing Clearance: 8' 0" (2.4 m)
