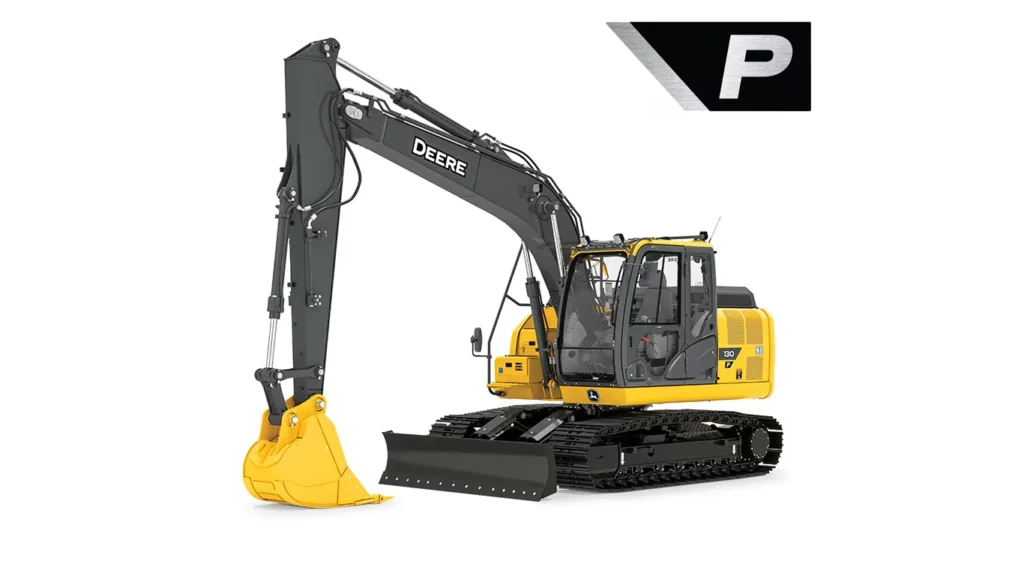

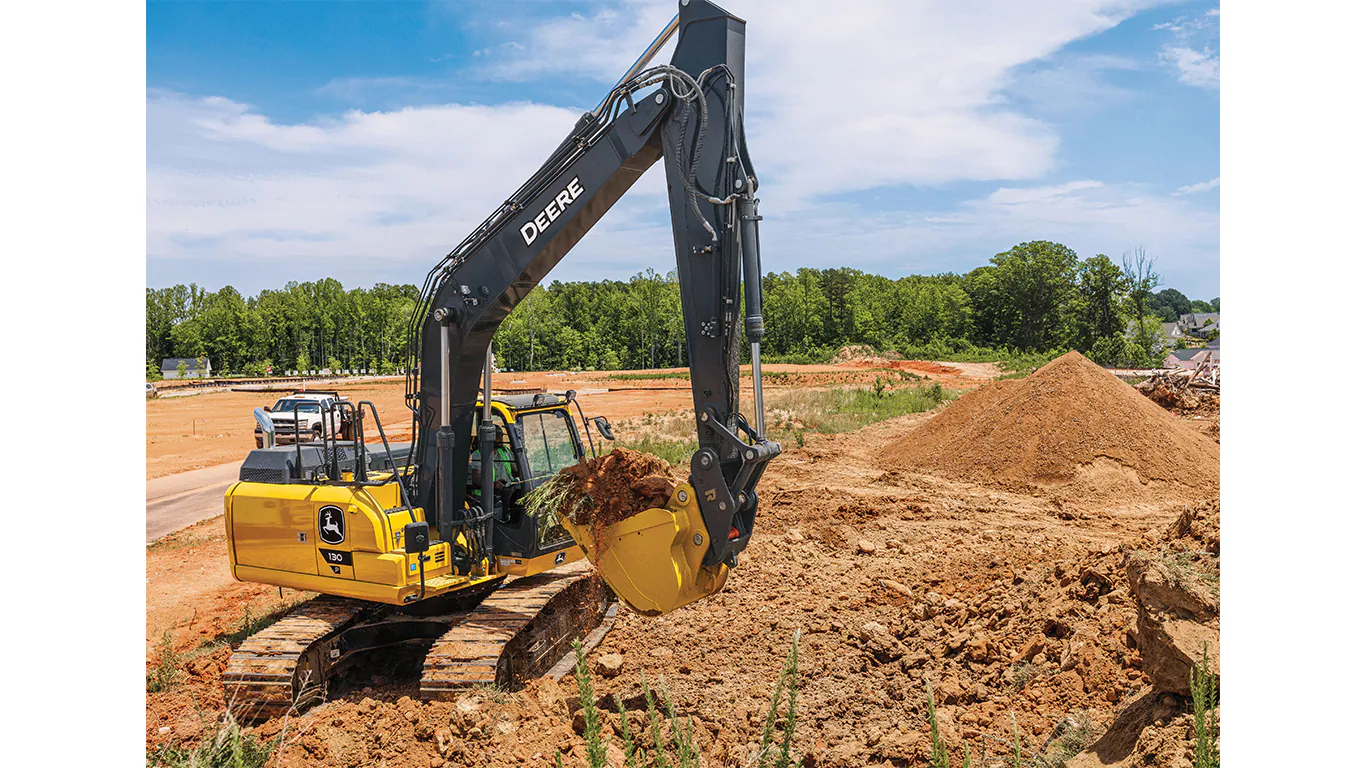

JOHN DEERE 130 P-Tier Mid-Size Excavator
Construction
- Net Power: 73 kW (98 hp)
- Max. Digging Depth: 6.03 m (19 ft. 9 in.)
- Operating Weight: 13 407 kg (29,531 lb.)
Select a category to view specifications (or view all).
| DIMENSIONS - Track Length On Ground, mm (ft/in) | 2880 (9 ft 5 in) |
|---|---|
| PERFORMANCE - Swing Torque, kNm (lbf / ft) | 34 (25000) |
| PERFORMANCE - Boost Pressure, bar (PSI) | 363 (5265) |
| DRIVELINE - Displacement, ltr (Inches³) | 3 (182) |
| DIMENSIONS - Dig Depth - Mono Boom, mm (ft/in) | 6030 (19 ft 9 in) |
| WEIGHTS - Operating Weight, kg (lbs) | 13624 (30009) |
| PERFORMANCE - Bucket Breakout, kN (lbf) | 96 (21480) |
| DIMENSIONS - Overall Undercarriage Length, mm (ft/in) | 3580 (11 ft 9 in) |
| PERFORMANCE - Total Flow, lt/min (gallons (US) / min) | 210 (56) |
| DIMENSIONS - Overall Undercarriage Width, mm (ft/in) | 3580 (11 ft 9 in) |
| DIMENSIONS - Dozer Blade Width, mm (ft/in) | 2590 (8 ft 6 in) |
| DRIVELINE - Number Of Cylinders | 4 |
| DIMENSIONS - Transport Length Mono Boom, mm (ft/in) | 7710 (25 ft 4 in) |
| PERFORMANCE - Bucket Pressure, bar (PSI) | 343 (4975) |
| PERFORMANCE - Gradeability, % | 70 |
| DRIVELINE - Number Of Track Rollers - Each Side | 7 |
| DRIVELINE - Rated speed, rpm | 2000 |
| DIMENSIONS - Dozer Blade Height, mm (inches) | 523 (21) |
| DIMENSIONS - Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 5880 (19 ft 3 in) |
| DIMENSIONS - Ground Clearance, mm (inches) | 410 (16) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 69 (18.2) |
| PERFORMANCE - Swing Speed, rpm | 13.3 |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 285 (75.3) |
| DIMENSIONS - Digging Reach - Mono Boom, mm (ft/in) | 8770 (28 ft 9 in) |
| DIMENSIONS - Tailswing Radius, mm (ft/in) | 2190 (7 ft 2 in) |
| DRIVELINE - Engine Manufacturer | John Deere Power Tech |
| PERFORMANCE - Tractive Force, kN (lbf) | 110 (24729) |
| DIMENSIONS - Width over fixed tracks, mm (ft/in) | 2590 (8 ft 6 in) |
| DRIVELINE - Emission Rating | Tier 4 / Stage IV |
| DIMENSIONS - Transport Height - Maximum, mm (ft/in) | 2870 (9 ft 5 in) |
| DRIVELINE - Number Of Carrier Rollers - Each Side | 1 |
| DIMENSIONS - Dig Height - Mono Boom, mm (ft/in) | 8930 (29 ft 4 in) |
| PERFORMANCE - Arm Tearout, kN (lbf) | 60 (13521) |
| DRIVELINE - Engine Output - Net, kW (hp) | 73 (98) |
| PERFORMANCE - Travel Speed - High, kph (mph) | 5.5 (3.4) |
| DIMENSIONS - Track Gauge, mm (ft/in) | 1990 (6 ft 6 in) |
| DIMENSIONS - Dump Height - Mono Boom, mm (ft/in) | 6520 (21 ft 5 in) |
| DRIVELINE - Track Shoe Width, mm (inches) | 600 (24) |
| DIMENSIONS - Ground Level Reach - Mono Boom, mm (ft/in) | 8670 (28 ft 5 in) |
| PERFORMANCE - Ground Bearing Pressure, kPa (PSI) | 35 (5.11) |
Featured Content
Central lubrication at arm tip
Two-piece front pipe clamping
Internal view of central lubrication grease pathOverview
P-Tier updates build on the proven G-Series design. Take front joint durability to new levels compared to G-Series.
- Grease point at arm tip for easy greasing and extended uptime.
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving.
- Redesigned boom foot bushings improve durability.
Hydraulic coupler ready option
Overview
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
- Ease of installation – pin on the coupler, connect the hydraulics, get to work.
- Compatible with multiple coupler manufacturers (see dealer for details).
Addition Details:
Coupler control switch on left side pilot tower
Coupler control switch
Right, Rear, and Left Cameras with additional light-emitting diode (LED) Surround Lighting
Overview
Standard Right Rear and Left Camera system with additional LED surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
