John Deere 135 P-Tier

John Deere 135 P-Tier

John Deere 135 P-Tier

John Deere 135 P-Tier

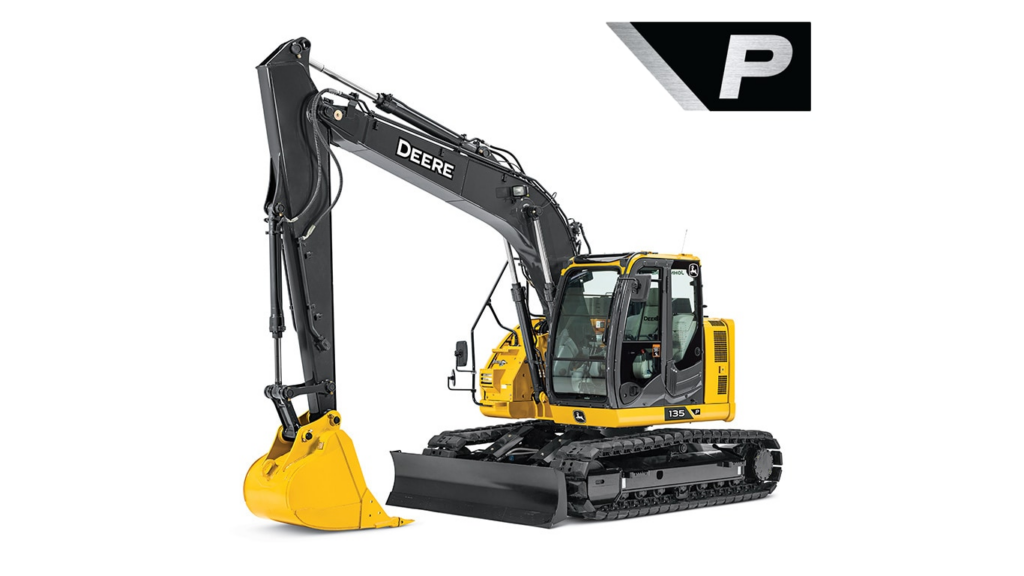

135 P-Tier Mid-Size Excavator

John Deere
Mid-Size Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Net Power: 75 kW (101 hp)
Max. Digging Depth: 5.98 m (20 ft. 0 in.)
Operating Weight: 14 300–15 400 kg (31,526–33,951 lb.)

Max Digging Depth 5.98 m (20 ft. 0 in.)
Net Rated Power 75 kW (101 hp)
Operating Weight 14,300–15,400 kg (31,526–33,951 lb.)

Features
Specifications

+ Expand All
- Close All

Select a category to view specifications (or view all).

CAPACITIES

Hydraulic Tank, ltr (gallons (US))	60 (15.9)
Fuel Tank, ltr (gallons (US))	220 (58)

DIMENSIONS

Track Length On Ground, mm (ft/in)	2880 (9 ft 5 in)
Dig Depth - Mono Boom, mm (ft/in)	5980 (19 ft 8 in)
Overall Undercarriage Length, mm (ft/in)	3580 (11 ft 9 in)
Overall Undercarriage Width, mm (ft/in)	2590 (8 ft 6 in)
Dozer Blade Width, mm (ft/in)	2490 (8 ft 2 in)
Transport Length Mono Boom, mm (ft/in)	7390 (24 ft 3 in)
Dozer Blade Height, mm (inches)	460 (18)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)	5790 (19 ft )
Ground Clearance, mm (inches)	410 (16)
Digging Reach - Mono Boom, mm (ft/in)	8860 (29 ft )
Tailswing Radius, mm (ft/in)	1490 (4 ft 11 in)
Width over fixed tracks, mm (ft/in)	2590 (8 ft 6 in)
Transport Height - Maximum, mm (ft/in)	2870 (9 ft 5 in)
Dig Height - Mono Boom, mm (ft/in)	9690 (31 ft 10 in)
Track Gauge, mm (ft/in)	1990 (6 ft 6 in)
Dump Height - Mono Boom, mm (ft/in)	7220 (23 ft 8 in)
Ground Level Reach - Mono Boom, mm (ft/in)	8720 (28 ft 8 in)

DRIVELINE

Displacement, ltr (Inches³)	3 (182)
Number Of Cylinders	4
Number Of Track Rollers - Each Side	7
Rated speed, rpm	2000
Engine Manufacturer	Isuzu
Emission Rating	Tier 4 / Stage IV
Number Of Carrier Rollers - Each Side	1
Engine Output - Net, kW (hp)	75 (101)
Track Shoe Width, mm (inches)	600 (24)

PERFORMANCE

Swing Torque, kNm (lbf / ft)	34 (25000)
Boost Pressure, bar (PSI)	363 (5265)
Bucket Breakout, kN (lbf)	104 (23380)
Total Flow, lt/min (gallons (US) / min)	210 (56)
Bucket Pressure, bar (PSI)	343 (4975)
Gradeability, %	70
Swing Speed, rpm	13.3
Tractive Force, kN (lbf)	110 (24729)
Arm Tearout, kN (lbf)	61 (13710)
Travel Speed - High, kph (mph)	5.5 (3.4)
Ground Bearing Pressure, kPa (PSI)	39 (5.66)

WEIGHTS

Operating Weight, kg (lbs)

15100 (33290)
