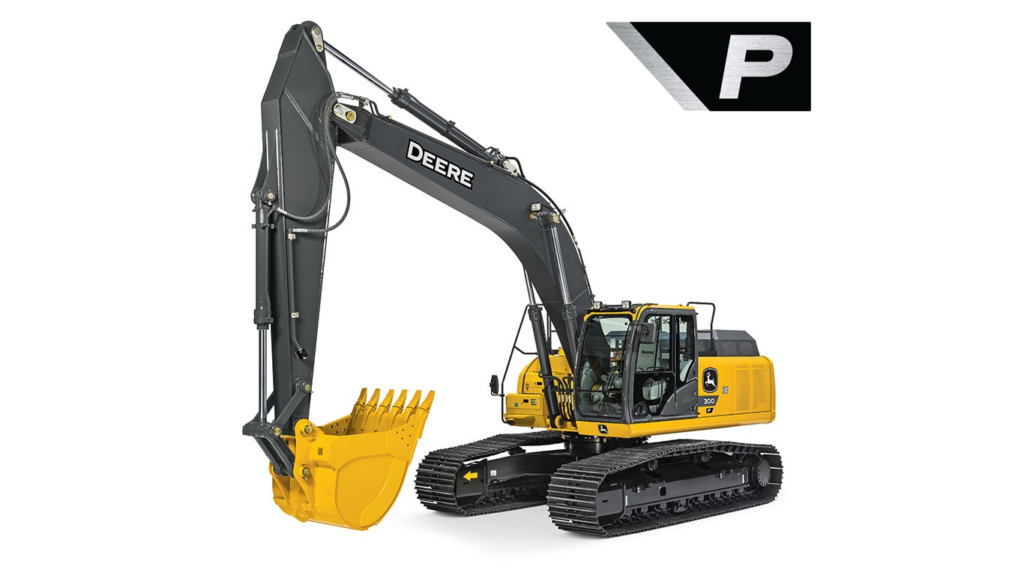

JOHN DEERE 300 P-Tier Mid-Size Excavator
Construction
- Net Power: 166 kW (223 hp)
- Max. Digging Depth: 7.87 m (25 ft. 10 in.)
- Operating Weight: 31 150 kg (68,674 lb.)
| DIMENSIONS - Tailswing Radius, mm (ft/in) | 3250 (10 ft 8 in) |
|---|---|
| PERFORMANCE - Total Flow, lt/min (gallons (US) / min) | 472 (124.6) |
| DIMENSIONS - Overall Undercarriage Width, mm (ft/in) | 3390 (11 ft 1 in) |
| DIMENSIONS - Ground Level Reach - Mono Boom, mm (ft/in) | 11090 (36 ft 5 in) |
| DRIVELINE - Emission Rating | Tier 4 |
| PERFORMANCE - Side lift - 7.5m Reach, kg (lbs) | 4660 (10020) |
| DRIVELINE - Engine Manufacturer | John Deere |
| DRIVELINE - Number Of Cylinders | 6 |
| PERFORMANCE - Boost Pressure, bar (PSI) | 380 (5511) |
| DIMENSIONS - Dig Height - Mono Boom, mm (ft/in) | 10470 (34 ft 4 in) |
| DIMENSIONS - Standard Arm, mm (ft/in) | 3760 (12 ft 4 in) |
| DRIVELINE - Displacement, ltr (Inches³) | 6.8 (415) |
| DRIVELINE - Track Shoe Width, mm (inches) | 800 (32) |
| DIMENSIONS - Dump Height - Mono Boom, mm (ft/in) | 7540 (24 ft 9 in) |
| DIMENSIONS - Dig Depth - Mono Boom, mm (ft/in) | 7870 (25 ft 10 in) |
| DRIVELINE - Rated speed, rpm | 1900 |
| PERFORMANCE - Arm Tearout, kN (lbf) | 127 (28551) |
| DIMENSIONS - Track Length On Ground, mm (ft/in) | 4050 (13 ft 3 in) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 514 (136) |
| CAPACITIES - Number Of Batteries | 2 |
| PERFORMANCE - Swing Speed, rpm | 10.3 |
| CAPACITIES - Voltage, V | 24 |
| DIMENSIONS - Transport Height - Maximum, mm (ft/in) | 3380 (11 ft 1 in) |
| WEIGHTS - Operating Weight, kg (lbs) | 31399 (69223) |
| PERFORMANCE - Tractive Force, kN (lbf) | 246 (55303) |
| DRIVELINE - Number Of Carrier Rollers - Each Side | 2 |
| PERFORMANCE - Gradeability, % | 70 |
| DIMENSIONS - Ground Clearance, mm (inches) | 510 (20) |
| DIMENSIONS - Digging Reach - Mono Boom, mm (ft/in) | 11270 (37 ft ) |
| PERFORMANCE - Bucket Pressure, bar (PSI) | 343 (4975) |
| DIMENSIONS - Width over fixed tracks, mm (ft/in) | 3390 (11 ft 1 in) |
| DIMENSIONS - Track Gauge, mm (ft/in) | 2590 (8 ft 6 in) |
| PERFORMANCE - Ground Bearing Pressure, kPa (PSI) | 43.8 (6.35) |
| PERFORMANCE - Travel Speed - High, kph (mph) | 5.2 (3.2) |
| PERFORMANCE - Bucket Breakout, kN (lbf) | 202 (45411) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 156 (41) |
| DIMENSIONS - Transport Length Mono Boom, mm (ft/in) | 10710 (35 ft 2 in) |
| DRIVELINE - Engine Output - Net, kW (hp) | 166 (223) |
| PERFORMANCE - Swing Torque, kNm (lbf / ft) | 90.5 (66749) |
| DRIVELINE - Number Of Track Rollers - Each Side | 8 |
| DIMENSIONS - Overall Undercarriage Length, mm (ft/in) | 4940 (16 ft 2 in) |
| PERFORMANCE - End lift - 7.5m Reach, kg (lbs) | 7910 (17010) |
| DIMENSIONS - Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 7710 (25 ft 4 in) |
Featured List
- Operating Weight: 31,150 kg (68,674 lb.)
- Max Digging Depth: 7.87 m (25 ft. 10 in.)
- Net Rated Power: 166 kW (223 hp)
Featured Content
Right, rear, and left cameras with additional LED surround lighting
Overview
Optional right, rear, and left camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
Central lubrication at arm tip
Two-piece front pipe clamping
Internal view of central lubrication grease path
Overview
P-Tier updates build on the proven G-series design. Take front joint durability to new levels compared to G-series.
- Grease point at arm tip for easy greasing and extended uptime
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving
- Redesigned boom foot bushings improve durability
Electronic cooling fans
Overview
At John Deere, we understand that jobsite conditions are tough and operating costs can drain your business. With new features now included on our 210, 250, and 300 P excavators, your fuel economy can improve by up to 7%. This not only helps your operation run more smoothly but can also help you save both time and money.
These new features have improved fuel economy:
- Reduce engine load with electric on-demand cooling fans.
- Individually serviceable fans with four bolts and one connector to remove and replace.
- In-line aftertreatment for reduced restriction and system complexity.
- Increased front piping diameter reduces hydraulic restriction, positively impacting fuel consumption.
With improved fuel economy, you can experience less downtime and lower daily operating costs.
Hydraulic coupler ready option
Overview
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
- Ease of installation – pin on the coupler, connect the hydraulics, get to work
- Compatible with multiple coupler manufacturers (see dealer for details)
Additional Details
Coupler control switch
Coupler control switch on left side pilot tower
