John Deere 75 P-Tier

John Deere 75 P-Tier

John Deere 75 P-Tier

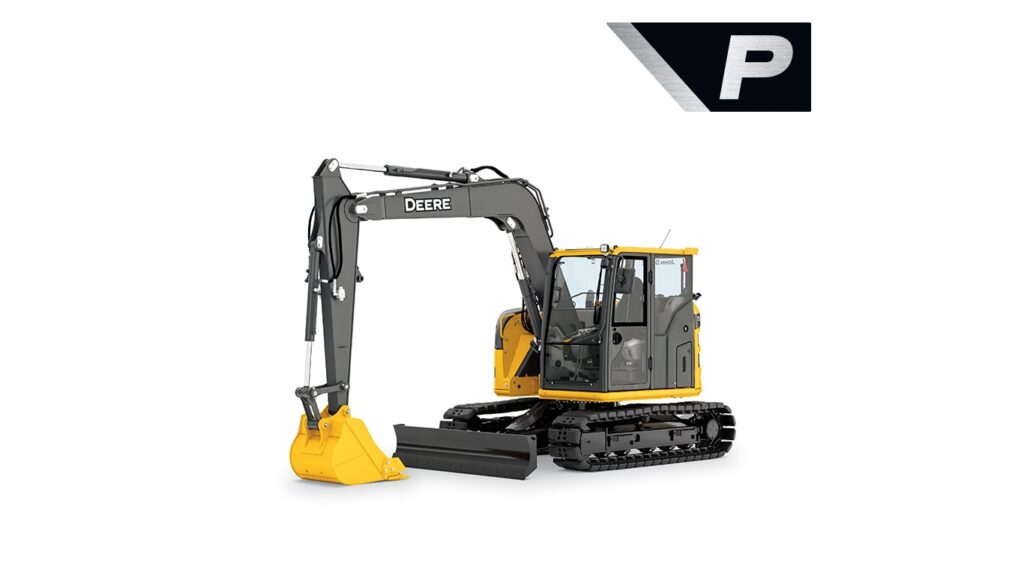

75 P-Tier Mid-Size Excavator

John Deere
Mid-Size Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Net Power: 50.4 kW (67.6 hp)
Max. Digging Depth: 4.65 m (15 ft. 3 in.)
Operating Weight: 8418-8766 kg (18,559-19,326 lb.)

Net Rated Power 50.4 kW (67.6 hp)
Max Digging Depth 4.65 m (15 ft. 3 in.)
Operating Weight 8,418-8,766 kg (18,559-19,326 lb.)

Features
Specifications

+ Expand All
- Close All

Select a category to view specifications (or view all).

CAPACITIES

Fuel Tank, ltr (gallons (US))	125 (33)
Hydraulic Tank, ltr (gallons (US))	52 (14)

DIMENSIONS

Ground Clearance, mm (inches)	360 (14)
Overall Undercarriage Width, mm (ft/in)	2470 (8 ft 1 in)
Digging Reach - Mono Boom, mm (ft/in)	6870 (22 ft 6 in)
Tailswing Radius, mm (ft/in)	1390 (4 ft 7 in)
Transport Height - Maximum, mm (ft/in)	2730 (8 ft 11 in)
Overall Undercarriage Length, mm (ft/in)	2900 (9 ft 6 in)
Track Gauge, mm (ft/in)	1750 (5 ft 9 in)
Dig Height - Mono Boom, mm (ft/in)	7580 (24 ft 10 in)
Width over fixed tracks, mm (ft/in)	2470 (8 ft 1 in)
Dozer Blade Height, mm (inches)	472 (19)
Dump Height - Mono Boom, mm (ft/in)	5480 (18 ft )
Dozer Blade Width, mm (ft/in)	2200 (7 ft 3 in)
Track Length On Ground, mm (ft/in)	2300 (7 ft 7 in)
Dig Depth - Mono Boom, mm (ft/in)	4650 (15 ft 3 in)
Transport Length Mono Boom, mm (ft/in)	6320 (20 ft 9 in)

DRIVELINE

Track Shoe Width, mm (inches)	600 (24)
Displacement, ltr (Inches³)	3.3 (202)
Engine Manufacturer	Yanmar
Rated speed, rpm	2000
Number Of Track Rollers - Each Side	5
Number Of Carrier Rollers - Each Side	1
Number Of Cylinders	4

PERFORMANCE

Travel Speed - High, kph (mph)	5 (3.1)
Tractive Force, kN (lbf)	71 (15961)
Bucket Breakout, kN (lbf)	59 (13264)
Swing Torque, kNm (lbf / ft)	16.6 (12244)
Swing Speed, rpm	10.1
Total Flow, lt/min (gallons (US) / min)	200 (53)
Ground Bearing Pressure, kPa (PSI)	29 (4.2)
Arm Tearout, kN (lbf)	35.3 (7936)
Bucket Pressure, bar (PSI)	280 (4061)
Gradeability, %	70

WEIGHTS

Operating Weight, kg (lbs)

8554 (18858)
