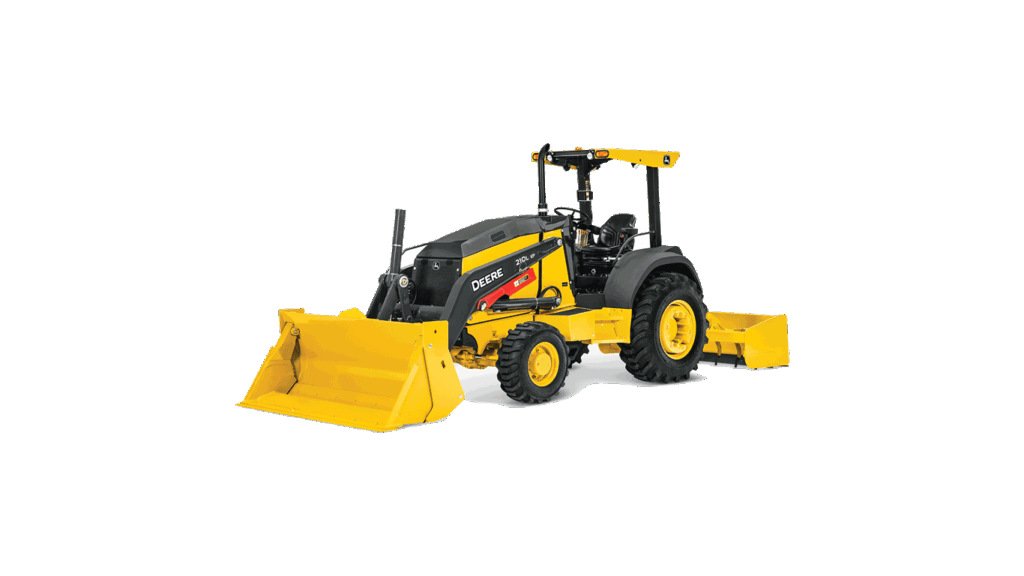

JOHN DEERE 210L EP Tractor Loader
Construction
- Net Power: 52 kW (70 hp) @ 1900 rpm
- Operating Weight: 4794 kg (10,569 lb.)
- Breakout Force: 38.7 kN (8,700 lb.)
- Lift Capacity: 2466 kg (5,432 lb.)
| DRIVELINE - Engine manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine model | PowerTech E 4045HT072 |
| DRIVELINE - Emission rating | Interim Tier 4 |
| DRIVELINE - Displacement, ltr (Inches�) | 4.5 (276) |
| DRIVELINE - Rated speed, rpm | 2100 |
| DRIVELINE - Net output, kW (hp) | 55 (73) Viscous Fan Option |
| DRIVELINE - Transmission type | Power Shift |
| DRIVELINE - Number of speeds - forward | 4 |
| DRIVELINE - Number of speeds - reverse | 2 |
| DRIVELINE - Front axle type | Mechanical FWD |
| DRIVELINE - Service type | Wet Multi Disc |
| DRIVELINE - Service actuation | Hydraulic w/Power Assist |
| DIMENSIONS - Overall length, mm (ft/in) | 5310 (17 ft 5 in) |
| DIMENSIONS - Minimum transport height, mm (ft/in) | 2640 (8 ft 8 in) Cab Height |
| DIMENSIONS - Overall width, mm (ft/in) | 2130 (7 ft ) |
| DIMENSIONS - Std shovel width, mm (inches) | 2184 (86) |
| DIMENSIONS - Dump Clearance @ 45 deg, mm (ft/in) | 2740 (9 ft ) |
| DIMENSIONS - Dump Reach, mm (inches) | 699 (27.5) |
| DIMENSIONS - Bucket Hinge Pin - Max Height, mm (ft/in) | 3340 (10 ft 11 in) |
| DIMENSIONS - Coupler | Optional Worksite Pro Hydraulic |
| CAPACITIES - Fuel tank capacity, ltr (gallons (US)) | 117.3 (31) |
| CAPACITIES - Hydraulic tank capacity, ltr (gallons (US)) | 45 (11.9) |
| CAPACITIES - Shovel cap SAE heaped, m� (yd�) | 0.86 (1.12) |
| CAPACITIES - Alternator capacity, Amp | 120 Cab Option |
| PERFORMANCE - Max. Forward Speed, kph (mph) | 31.7 (19.7) |
| PERFORMANCE - Max. Reverse Speed, kph (mph) | 12.9 (8) |
| PERFORMANCE - Lift Capacity to Full Height, kg (lbs) | 2466 (5432) |
| PERFORMANCE - Oscillation angle, � � | 22 |
| PERFORMANCE - Breakout force std shovel, kN (lbf) | 38.7 (8700) |
| PERFORMANCE - System voltage, V | 12 |
| PERFORMANCE - Pump type | Gear |
| PERFORMANCE - Pump flow, lt/min (gallons (US) / min) | 78 (20.5) |
| PERFORMANCE - System pressure, bar (PSI) | 189.6 (2750) |
| WEIGHTS - Operating weight, kg (lbs) | 4794 (10569) |
Featured List
- Net Power: 52 kW (70 hp)
- Operating Weight: 4,794 kg (10,569 lb.)
- Breakout Force: 38.7 kN (8,700 lb.)
- Lift Capacity: 2,466 kg (5,432 lb.)
Featured Content
Mechanical-front-wheel drive (MFWD) and differential lock can be engaged on-the-go to give extra traction in poor underfoot conditions or for moving heavy loads. Optional limited-slip front axle delivers 65 percent of available power to the tire with the best traction. For true all-wheel-drive pulling power.
The 210L EP IT4/Stage IIIB emission-certified PowerTech™ E engine requires no aftertreatment.
No diesel particulate filter (DPF) is needed on either model, reducing downtime and expense.
Suction-type cooling fan is standard; optional viscous variable-rate (temperature-controlled) fan boosts rated engine power to 55 kW (73 hp).
Standard economy mode helps maximize fuel usage in lighter-work applications with minimal effect on machine performance.
With ride control activated, front loader hydraulic cylinders act as a shock absorber, smoothing travel over rough terrain, helping full loads reach their destination, and reducing operator fatigue.
New hitch design makes it easier to position the box blade over the pile for more versatility and productivity.
Integral three-point hitch accommodates a variety of tools
Choose cab or open operator station.
Higher canopy with wider and lower step provides better visibility over the hood and to the corners of the front bucket, as well as to the rear box blade. Makes it easier to service under-canopy components, too.
Two-position tilt hood provides same-side ground-level access to engine and transmission dipsticks, engine-oil fill, fuel and air filters, and coolant reservoir. Fuel fill is also closely convenient.
