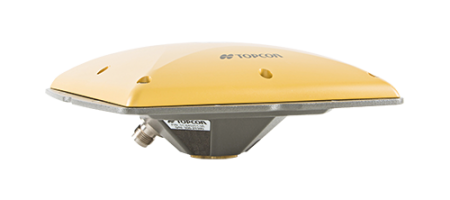

TOPCON PG-S1
GNSS Antennas
High-precision dual frequency and dual constellation antenna
Packaged in a lightweight and robust housing, the advanced PG-S1 GNSS antenna provides excellent tracking performance for applications where our modular or handheld GNSS receivers are required.
• High-performance Fence Antenna® technology • Dual constellation, dual frequency geodetic antenna • L-Band compatible • Precision tuned and micro-centred design • Rugged enclosure with high shock and vibration tolerance
| Vibration Rating | Sinusoidal: IEC 60068-2-6, Test Fc |
|---|---|
| Operating Frequency Range | L-Band: 1535 ± 10 MHz |
| Out-of-Band Rejection | L2: ± 200 MHz -60 dBc (typical) |
| Gain at Zenith (90º) | GPS L1 5.5 dBic (min) GPS L2 5.5 dBic (min) GLONASS L1 4.5 dBic (min) GLONASS L2 4.5 dBic (min) L-Band 3 dBic (min) |
| Antenna connector | TNC |
| Weight without Ground Plane | 430g |
| Out-of-Band Rejection | L1: ± 100 MHz -30 dBc (typical) |
| Enclosure | Aluminum with Plastic Radome |
| Vibration Rating | Random: IEC 60068-2-34, Test Fd |
| Drop Test | 2m pole drop to concrete |
| Storage Temperature | -55°C to 85°C |
| Bump | IEC 60068-2-29 Test Eb |
| Diameter with Ground Plane | 200 mm |
| Shock Rating | IEC 60068-2-29 Test Ea |
| Centering | < 1 mm, micro-centered |
| Power Consumption | 55 mA (typical) |
| Operating Temperature | -50°C to 85°C |
| Input Voltage Range | 3-18 VDC. Reverse Polarity Protected |
| Weight with Ground Plane | 615g |
| Operating Frequency Range | L1 GPS/GLONASS: 1586.5 ± 25MHz |
| Mount Type | 5/8-11 UNC-2B thread |
| Operating Frequency Range | L2 GPS/GLONASS: 1236 ± 20 MHz |
| LNA Gain | 33 dB (typical) |
| Dust/Water Protection | IP67 |
| Dimensions | W: 5.6" (141.6 mm) H: 5.6" (141.6 mm) D: 2.1" (54.2 mm) |
Featured Content
- Geopositioning
- Construction
- Forestry
- OEM Manufacturing
Lightweight Geodetic GNSS Antenna
Rugged and lightweight geodetic GNSS micro-centred antenna for multiple application types
The PG-S1 geodetic antenna is built around our patented Fence Antenna® technology which provides excellent tracking sensitivity and multipath rejection for all surveying and construction applications.
With support for L1/L2 and L-Band frequencies from GPS and GLONASS satellite constellations, the high precision micro-centred antenna with integrated ground plane can be paired with any Topcon modular or handheld GNSS receiver providing a high performance dual-frequency RTK solution.
