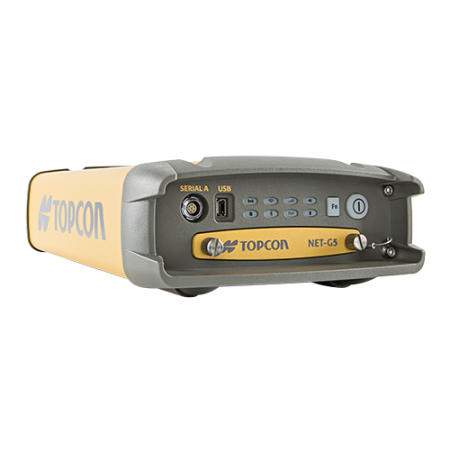

Topcon NET-G5

NET-G5

  • Topcon
  • GNSS Network Solutions

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

SELF-RELIANT NETWORK REFERENCE STATION

Designed from the ground up from Topcon's years of proven signal tracking innovation, the NET-G5 receiver was born to perform within a reference station network. The recipe for success is to always have the highest technology at your reference station to then better host any client that joins the network. Future-ready, if there is a navigational satellite up above, this receiver tracks and uses it.

  • Integrated web interface for remote management
  • Built-in Bluetooth and Wi-Fi connectivity
  • Efficient signal tracking across the entire GNSS spectrum
  • Up to 32GB internal memory
  • 452 Universal Channel Vanguard Technology
  • + Expand All
  • - Close All
  • Overview

    THE HEART OF HIGH ACCURACY NETWORK GNSS

    The NET-G5 reference station receiver combined with Topcon's CR-G5 choke ring antenna provides premier network solutions for any environment. Durable and dependable, the NET-G5 is capable of withstanding a 2 meter drop with a mere 5W of power sipping consumption. Managing your entire network of NET-G5 receivers could not be easier though secure remote connectivity from anywhere, anytime.

  • Applications
    • Land Surveying
    • Topography & As-Built
    • Utilities
  • Weight: Less than 4.4 lbs. (2 kg)
  • Cellular: Integrated HSPA+
  • USB: Host and Device supporting OTG functionality
  • Humidity: 100% condensing
  • Dimensions: W: 5.9" (150 mm)
  • External Power Input*: Nominal 12 VDC
  • Accuracy: RTK (L1+L2): H: 5 mm + 0.5 ppm V: 10 mm + 0.8 ppm
  • ASCII output: NMEA 0183 version 2.x, 3.x and 4.x
  • Accuracy (See brochure for more information.): Precision Static: H: 3.0 mm + 0.1 ppm V: 3.5 mm + 0.4 ppm
  • Interface: Multi-function power button supporting data logging and factory reset operations
  • Update/Output rate: 1Hz - 100 Hz selectable
  • Number of Satellites Tracked: GPS, GLONASS, QZSS, SBAS, Galileo, L-Band and BeiDou (BDS)
  • Accuracy: Static/Fast Static: H: 3.0 mm + 0.4 ppm V: 5.0 mm + 0.5 ppm
  • Drop Test: 2 meter drop to concrete surface, IEC 60068-2-29, IEC 60068-2-27
  • Number of Channels: 452-Channel Vanguard Technology with Universal Tracking Channels
  • Dimensions: D: 7.9” (200 mm)
  • Ports*: 3 Serial, 1 USB, 2 Power, 1 Ethernet
  • Power Consumption: Less than 5.0 W (typical)
  • Real Time Data Output: TPS, RTCM SC104 v2.x, 3.x and MSM, CMR/CMR+, BINEX, RINEX
  • Operating Temperature: -40°C to 80°C with external power / -30°C to 65°C with integrated batteries
  • Dimensions: H: 2.4” (60 mm)
  • Antenna connector: External – Geodetic full wave CR-G5 or PN-A5 antenna
  • Ports: 2 x Power ports (1 primary and 1 backup) plus Class 3 PoE
  • Bluetooth: Class 2 v2.0 + EDR
  • Shock / Crash Safety: Method 516.6 (40 g RMS)
  • Dust/Water Protection: IP67
  • Memory Card: Removable SD/SDHC up to 32 GB
  • Vibration Rating: Compliance with MIL-STD 810G, Method 514.6, Category 4
  • Wi-Fi: Yes
