MORBARK Model 30 Chiparvestor Whole Tree Chipper
Chiparvestors
Equipment Features
- Operator’s Cab: Optional - Roomy, climate-controlled cabs are equipped with comfortable seats, joystick controls and full instrumentation.
- Morbark Integrated Control Systems - This ultimate diagnostic system monitors pressures, temperatures, clutch systems and engine efficiency to maximize performance.
- Feed System - Powerful multi-wheel feed system provides positive feed of logs and tops for excellent chip quality.
Featured List
- Chip Quality - Units produce quality chips even in non-merchantable and juvenile timber.
- Chipper Disc - Each disc is fabricated from plate steel and put through ultrasonic testing. Material certification is issued for each disc, which provides the best chipper disc in the industry.
Featured Content
- PT Tech hydraulic clutch
- Four-knife chipper disc
- Espar heating system for cold-weather start
- Electric power
- Light package
- 11-HP (8.2 kW) air compressor
- 83” (210.82 cm) diameter x 5” (12.7 cm) thick three-knife chipper disc with LH rotation
- Hydraulic chipper hood for easy knife access
- Four-wheel hydraulic feed wheel compression system
- Heavy-duty feed works drive
- Electric warning horns activated from cab and/or ground position on both sides of machine
- Enclosed weatherized operator’s cab lowers hydraulically for transport and includes combination air conditioner/heater and six-way adjustable seat and joystick controls
- Morbark 500 knuckleboom loader, 23” (7 m) reach, 180º swing and by-pass grapple, lift capacity of 17,200 lbs. (6,894.6 kg) at 10” (3.05 m)
- Reversing Fan
- PT Tech hydraulic clutch
- Four-knife chipper disc
- Espar heating system for cold-weather start
- Electric power
- Light package
- 11-HP (8.2 kW) air compressor
- Air Compressor
- Halogen light package
- ESPAR heating system for cold-weather start
- 270º hydraulic powered swivel end discharge spout
- CAT 330L undercarriage with 700mm triple grouser pads with ground clearance of 20”(50.8 cm)
- Infeed extension to hydraulic fold up 90º for transport
Chipping capacity: 30” (76.2 cm)
Length: 32” (9.75 m)
Height: 13’4” (4.06 m)
Width: 10’4” (3.15 m)
Gross weight (approx.): 58,000 lbs. (26,308 kg)
Horsepower: up to 1,050 HP (782.98 kW)
Engine: CAT
Tandem axle trailer: 50,000 lb. (22,679 kg) suspension
Fuel capacity (tank): 300 gal (1,135.62 L)
Hydraulic oil capacity: 200 gal (757.08 L)
Knives (3): 23” x 5” x ½” (58.42 cm x 12.7 cm x 1.27 cm)
Chip sizes: 5/8”, ¾”, 7/8”, 1”, 1”¼”, 2” (15.88 mm, 19 mm, 22.22 mm, 25.4 mm, 31.75 mm, 50.8 mm)
- 83” (210.82 cm) diameter x 5” (12.7 cm) thick three-knife chipper disc with LH rotation
- Hydraulic chipper hood for easy knife access
- 30” (76.2 cm) x 10” (3.05 m) CAT chain infeed bed
- Three-wheel hydraulic feed system
- Two 13” (33 cm) x 25”¾” (65.4 cm) side feed wheels and one 22”¼” (56.52 cm) x 68” (172.72 cm) top feed wheel
- Wireless remote control with tethered back-up
- Enclosed weatherized operator’s cab is mounted on rubber shock absorbers and tilts hydraulically for transport and includes combination air conditioner/heater and six-way adjustable seat and joystick controls
- Morbark 1000 knuckleboom loader, 25” (7.62 m)reach, 210º swing and by-pass grapple, with lift capacity of 20,000 lbs. (9,071.85 kg) at 10” (3.05 m)
- Dirt separator with deflector
- Hydraulic swivel/telescoping discharge spout
- Reversing fan
- 83” (210.82 cm) diameter x 5” (12.7 cm) thick three-knife chipper disc with LH rotation
- Hydraulic chipper hood for easy knife access
- 30” (76.2 cm) x 10” (3.05 m) CAT chain infeed bed
- Four-wheel hydraulic feed system
- Two 13” (33 cm) x 25”¾” (65.4 cm) side feed wheels and one 22”¼” (56.52 cm) x 68” (172.72 cm) top feed wheel
- Dirt separator with deflector
- Hydraulic swivel/telescoping discharge spout
- Reversing fan
Chipping capacity: 30” (76.2 cm)
Length: 41” (12.5 m)
Height: 13’6” (4.11 m)
Width: 11” (3.35 m)
Gross weight (approx.): 82,000 lbs. (37,195 kg)
Horsepower: up to 1,200 HP (894.84 kW)
Engine: CAT
Tandem axle trailer: 50,000 lb. (22,679 kg) suspension
Fuel capacity (tank): 400 gal (1,514.16 L)
Hydraulic oil capacity: 300 gallons (1,135.62 L)
Knives (3): 23” x 5” x ½” (58.42 cm x 12.7 cm x 1.27 cm)
Chip sizes: 5/8”, ¾”, 7/8”, 1”, 1”¼”, 2” (15.88 mm, 19 mm, 22.22 mm, 25.4 mm, 31.75 mm, 50.8 mm)
Chipping capacity: 30” (76.2 cm)
Length: 32’11” (10 m)
Height: 11’11” (3.63 m)
Width: 11’10” (3.61 m)
Gross weight (approx.): 94,000 lbs. (42,638 kg)
Horsepower: up to 1,200 HP (894.84 kW)
Engine: CAT
Fuel capacity (tank): 400 gal (1,514.16 L)
Hydraulic oil capacity: 300 gallons (1,135.62 L)
Knives (3): 23” x 5” x ½” (58.42 cm x 12.7 cm x 1.27 cm)
Chip sizes: 5/8”, ¾”, 7/8”, 1”, 1”¼”, 2” (15.88 mm, 19 mm, 22.22 mm, 25.4 mm, 31.75 mm, 50.8 mm)

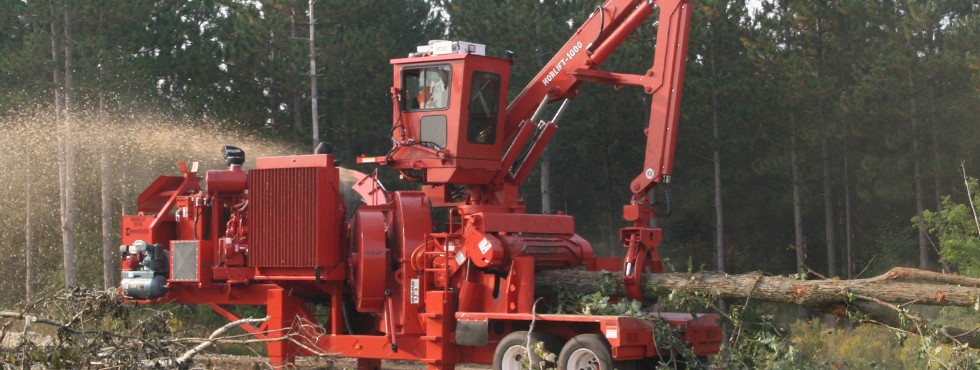

The largest in the line, the Morbark Model 30 Chiparvestor is designed for power! This aggressive machine features a chipper disc that is 5″ (12.7 cm) thick and weighs 8,000 lbs. (3,628.74 kg), making it perfect for the toughest of jobs. With an 83″ (210.82 cm) disc and a four-wheel hydraulic feed wheel compression system, this machine is fully equipped to handle what you give it. Customizable options include a three- or four-knife chipper disc, tri-axle, reversing fan, track option and many more, making it ideal for any of your needs. Increase your efficiency with the optional cab and loader, which boasts a lift capacity of 20,000 lbs. (9,071.85 kg) at 10″ (3.05 m). With the optional Strickland SS40 undercarriage, the Morbark 30 WCL Track can traverse the roughest terrain.
