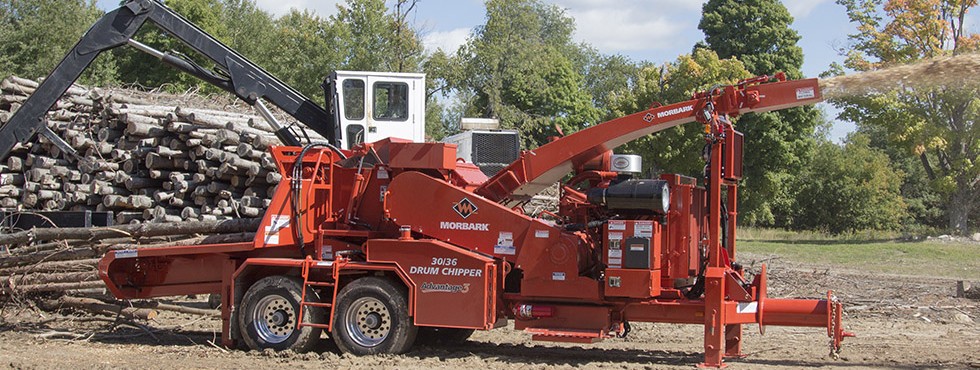

MORBARK 30/36 Whole Tree Drum Chipper
Drum Chippers
The Morbark 30/36 Whole Tree Drum Chipper’s high production rate lowers operating costs by increasing fuel efficiency. The aggressive live floor feeding system with two strands of durable WHD-120 chain and a large top and bottom feedwheels ensure positive feeding of material, including brushy tops and limbs. Morbark’s Advantage 3 Drum produces more consistent chips, while the heat-treated, AR-400 steel drum skin provides longer wear life for lower replacement costs and less downtime.
Featured List
- Optional Forestry Grate - The operator-friendly, slide-in forestry grate system reduces oversized chips for more consistent, higher-quality chips.
- Sloped Infeed System - Aggressive, sloped live floor and large top and bottom feedwheels ensure positive feed of brushy tops and limbs.
- Discharge - Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
- Optional Chip Accelerator - A mechanically driven chip accelerator fully loads vans with chips.
- Morbark Integrated Control Systems (MICS) - This ultimate diagnostic system monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
- Drum - The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
Featured Content
Drum diameter: 36” (91.44 cm)
Drum width: 34”½” (87.63 cm)
Chipper knives (6): 11” x 7 5/16” x ¾” thick (27.94 cm x 18.57 cm x 1.9 cm)
Counter knives (6): 11” x 6 3/8” x ½” thick (27.94 cm x 16.19 cm x 1.27 cm)
Knives and Counter knives are Babbitt-style
Feed drive: hydraulic
Straight discharge chute includes hydraulically operated chip deflect with vertical and horizontal adjustment. Optionally includes a mechanically driven chip accelerator to fully load vans.
- MicroChipper package: to include 12-knife drum, chip accelerator and 3×3 grate system
- Top load discharge
- ESPAR heating system for cold-weather start
- Chip Accelerator
- Forestry Grate
Model 180 Hydraulic Knuckleboom Loader with 18” (5.48 m) extended boom reach, turntable bearing with 310-degree swing, 2537 log grapple with 360-degree turn motor. Stationary operator’s cab and console complete with joystick controls for loader, Red Dot combination air conditioner/heater, cab-mounted MICS, engine gauge panel, emergency shut-down system, six-way adjustable swivel seat and color-tinted safety glass with steel guard.
Infeed opening: 31” x 34” (78.74 cm x 86.36 cm)
Infeed System consists of one 30” (76.2 cm) diameter top compression feed roll with internal drive, a 14” (35.56 cm) diameter bottom feed wheel, and a 31” wide x 11’6” (78.74 cm x 3.5 m) long live floor equipped with two strands of WDH-120 chain.
Wireless remote control with a 60” (18.28 m) tethered remote back-up system for chipper operation. Functions include forward/reverse of feed works, up and down of top feed roll, operation of chip discharge spout and throttle.
Length NCL: 31’6” (9.6 m)
Height NCL: 11’6” (3.5 m)
Width NCL: 8’4” (2.54 m)
Length WCL: 35” (10.66 m)
Transport Height WCL: 13” (3.96 m)
Operating Height WCL: 15’10” (4.83 m)
Width WCL: 8’6” (2.59 m)
Length WCL Track: 29’6” ( 8.99 m)
Height WCL Track: 11’6” (3.5 m)
Width WCL Track: 10’9” (3.27 m)
Gross weight NCL: 36,500 lbs. (16,556 kg)
Tongue weight NCL: 7,200 lbs. (3,265 kg)
Axle weight NCL: 29,300 lbs. (13,290 kg)
Tandem axle NCL: 36,000 lbs. (16,330 kg) leaf spring suspension
Gross weight WCL: 39,140 lbs. (17,755 kg)
Tongue weight WCL: 14,440 lbs. (6,550 kg)
Axle weight WCL: 24,700 lbs. (11,205 kg)
Tandem axle WCL: 36,000 lbs. (16,330 kg) leaf spring suspension
Gross weight WCL Track: 57,000 lbs. (28,855 kg)
Engine: CAT
Horsepower: 540 HP to 765 HP (402 kW to 570 kW)
Fuel capacity (tank): 160 gallons (605 litres)
Hydraulic oil capacity: 80 gallons (303 litres)
Chipping capacity: 23” (58.42 cm) diameter
Tires: Super Singles 385/65R/22.5 20-ply
Brakes: air
Towing arrangement: Pintle Hitch Tongue with Skidder Plates
11-HP (8.2 kW) air compressor with lockable enclosure
Automatic reversing fan system
Rear hydraulic stabilizers
Light package
