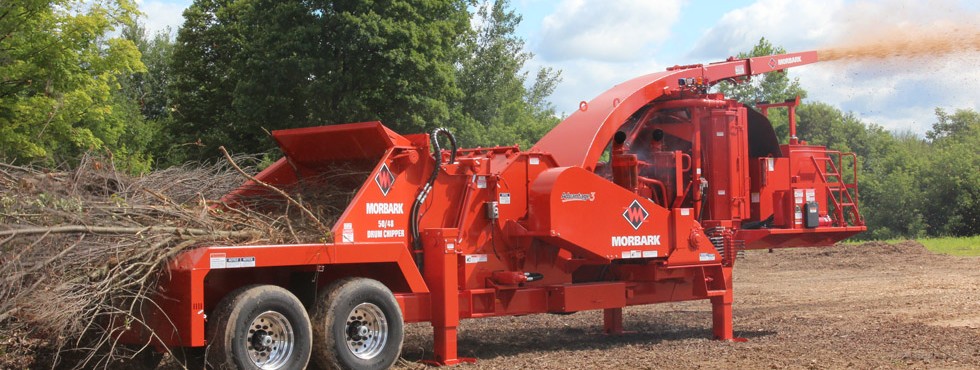

MORBARK 50/48B Whole Tree Drum Chipper
Drum Chippers
Equipment Features
- Morbark Integrated Control Systems (MICS) - This ultimate diagnostic system monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
- Hydraulic Stabilizers - With the optional rear stabilizers all four stabilizers provide a solid stance during chipping operations.
- Operator’s Cab Option - Cab hydraulically raises into operating position and lowers for transport and access.
Featured List
- Infeed System - Aggressive live floor and large top feedwheel ensure positive feed of brushy tops and limbs.
- Advantage 3™ Drum - The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
- Discharge - Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
Featured Content
Drum diameter: 48” (121.92 cm)
Drum width: 55 ½” (140.97 cm)
Chipper knives: (10) 11” x 7 5/16” x ¾” thick (27.94 cm x 18.57 cm x 1.9 cm)
Counter knives: (10) 11” x 6 3/8” x ½” thick (27.94 cm x 16.19 cm x 1.27 cm)
Knives and Counter knives are Babbitt-style and made of A-8 modified steel
Drum speed: 945 RPM
Feed drive: Hydraulic
Model 500 Hydraulic Knuckleboom Loader with 23” (7 m) extended boom reach, turntable bearing with 280-degree swing, 442 grapple with 360-degree turn motor. Stationary, rising cab and console, complete with joystick controls for loader, Red Dot combination air conditioner/heater, cab-mounted MICS, engine gauge panel, emergency shut-down system, six-way adjustable swivel seat, color-tinted safety glass with steel guard.
- ESPAR heating system for cold-weather start
- MicroChipper configuration with chip accelerator and forestry grate
- Top load discharge
Infeed opening 52” x 45” (132.08 cm x 114.3 cm)
Straight discharge chute includes hydraulically operated chip deflect with vertical and horizontal adjustment, clean-out door, and an additional 18” top section.
Length (transport) NCL: 40’9” (12.42 m)
Height NCL: 11’10” (3.61 m)
Width NCL: 10’2” (3.1 m)
Length (transport) NCL Track: 36’4” (11.07 m)
Height NCL Track: 11’11” (3.63 m)
Width NCL Track: 11’7” (3.53 m)
Length (transport) WCL Track: 36’4” (11.07 m)
Height WCL Track: 12’5” (3.78 m)
Width WCL Track: 12” (3.66 m)
Gross weight NCL: 68,000 lbs. (30,845 kg)
Axle weight NCL: 30,000 lbs. (13,607 kg)
Tongue weight NCL: 38,000 lbs. (17,263 kg)
Tandem-axle trailer NCL: 44,000 lbs. (19,960 kg) suspension
Gross weight NCL Track: 88,000 lbs. (39,920 kg)
Gross weight WCL Track: 104,000 lbs. (47,175 kg)
Engine: CAT
Horsepower: 1050 HP (783 kW)
Fuel capacity (tank): 400 gallons (1,514 litres)
Hydraulic oil capacity: 285 gallons (1,078 litres)
Brakes: air
Towing arrangement: fifth wheel
Dust suppression system
Hydraulically operated debris containment door
330L or 330EL Caterpillar undercarriage (optional)
Automatic reversing fan system
Rear hydraulic stabilizers
Light package
11 HP (8.2 kW) air compressor with lockable enclosure
Wireless remote control with a 60” (18.28 m) tethered remote back-up system for chipper operation. Functions include forward/reverse of feed works, up and down of top feed roll, operation of chip discharge chute and throttle.
The Morbark 50/48 whole tree wood chippers are the largest, most productive drum chippers on the market. Equipped with Morbark’s exclusive Advantage 3 Drum, the 50/48 creates more uniform chips while keeping operating and maintenance costs low. The reverse pivot yoke produces more down pressure than the conventional style yoke for aggressive feeding of a variety of material. The 50/48 comes equipped with the Morbark Integrated Control System, allowing for both onsite and remote diagnostic monitoring of hydraulic pressures, temperatures, feed rates and more to maximize performance.
