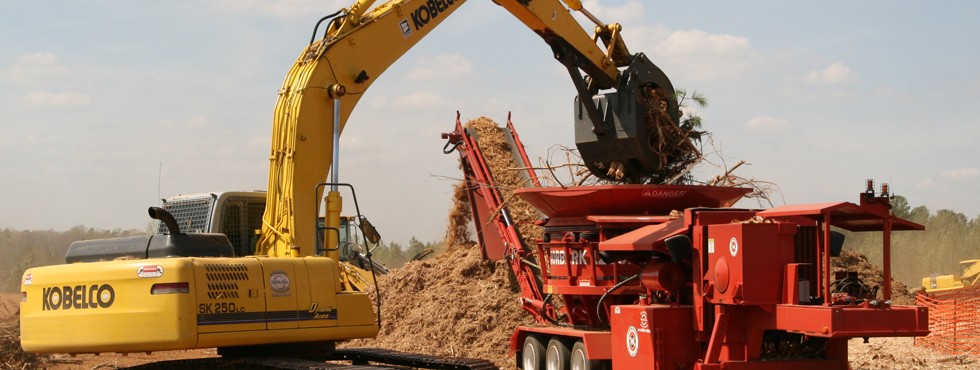

Morbark 1200XL Tub Grinder
  • + Expand All
  • - Close All
  • Specs - Tub

    Tub has 9? (2.74 m) diameter at inside base, 62? (157.48 cm) deep walls, and floor constructed of 1/2? (1.27 cm) thick T-1 wear-resistant steel, supported by (16) roller guides carried on 35mm diameter shafts.

    Hydraulic full-tilt tub for easy access to hammermill, with hydraulically powered variable RPM forward and reverse tub control; MICS (Morbark Integrated Control System) tub controlled with automatic reversing tub, sensor system.

    Tub cover for debris containment


  • Specs - General

    Length (transport): 38’2? (11.63 m)
    Length (operating): 57’3? (17.45 m)
    Height (transport): 12’10” (3.9 m)
    Width: 11’11” (3.63 m)


    Gross weight NCL: 55,620 lbs. (25,230 kg)
    Axle weight NCL: 43,840 lbs. (19,885 kg)
    Tongue weight NCL: 11,810 lbs. (5,360 kg)

    Gross weight WCL (optional): 72,920 lbs. (33,075 kg)
    Axle weight WCL (optional): 51,760 lbs. (23,480 kg)
    Tongue weight WCL (optional): 21,160 lbs. (9,600 kg)


    Engine: CAT
    Horsepower: 800 HP to 875 HP (596 kW to 652 kW)


    Fuel capacity (tank) : 300 gallons (1,135 litres)
    Hydraulic oil capacity: 205 gallons (776 litres)


    Screen Area: 2,480 sq in (16,000 sq cm)


    11-HP (8.2 kW) air compressor

    Dust suppression system

    Magnetized end pulley

    Morbark reversing fan




  • Specs - Discharge System

    Discharge system consisting of dual hydraulically powered 14? (35.56 cm) diameter augers and a 36? (91.44 cm) belt conveyor

    Discharge height: 15? (4.57 m)

    Hydraulic fold for transport

    Front hydraulic stabilizers and manual outriggers


  • Specs - Options
    • Available with cab and loader
    • Track undercarriage available on NCL model
  • Specs - Hammermill and Screens

    27? x 51-1/4? (65.58 cm x 130.17 cm) Hammermill system constructed of a heavy-duty 16-1/2? (41.91 cm) diameter laser cut rotor, (13) 1-3/4? (4.44 cm), thick 2-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 5-7/8? (14.92 cm) diameter rotor shaft with 3-15/16? (10 cm) bearings direct driven at engine RPM and (8) 2? (5.08 cm) hammer retaining rods.

    Complete with (24) 2? (5.08 cm) balanced hard-surfaced hammers and (24) 3-1/16? (7.77 cm) forged double-edged replaceable inserts.

    1? thick wear form steel heavy-duty screens
