Morbark 1600 Tub Grinder

1600 Tub Grinder

  • Morbark
  • Tub Grinders

Find a location to get your local store information and inventory.

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

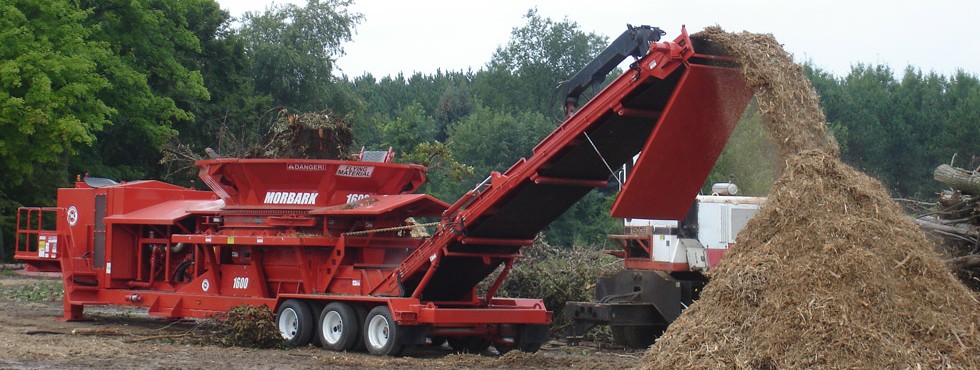

The largest tub grinder on the market, the Morbark 1600 Tub Grinder is able to power through and reduce materials from large land clearing or organic/wood waste programs. With an 11’2″ tub diameter, 15′ tub opening and a capacity of 20 cubic yards. With horsepower ranging from 1,050 to 1,200, this machine can power through tons of raw materials from large land clearing projects and organic/wood waste processing. The Morbark Integrated Control System (MICS) monitors key systems while maximizing performance. The remote control allows you to quickly adjust feed systems for top production rates and fuel efficiency. With laser-cut, factory-balanced hammermills and three 16″ diameter hydraulic augers to quickly move product, this tub grinder gives you optimum production.
  • Morbark Integrated Control Systems (MICS) - The ultimate diagnostic system; monitors hydraulic pressures, temperatures, clutch systems, tub rotation and engine efficiency while automatically adjusting to maximize performance.
  • Hammermill - Laser cut, factory balanced mill with forged hammers provides optimum grinding power.
  • Remote Control - Allows the operator to quickly adjust feed systems to obtain maximum production rates while keeping engine load constant and fuel consumption to a minimum.
  • Hydraulic Augers - Durable, hard surfaced steel augers quickly remove product from beneath the mill. Pressure sensors on the auger system automatically slow tub rotation to prevent plugging.
  • + Expand All
  • - Close All
  • Specs - Discharging System

    Three 16” (40.64 cm) diameter augers discharging onto a 60” x 34” (152.4 cm x 10.36 m) heavy-duty belt conveyor

    Discharge height of 18” (5.48 m)

  • Specs - Hammermill and Screens

    43” x 69” (109.22 cm x 175.26 cm) hammermill opening with heavy-duty 28” (71.12 cm) diameter rotors, (16) 1-3/8” (3.49 cm) thick 2-piece rotor plates keyed on an 8-1/4” (20.95 cm) diameter rotor shaft with 5-3/16” (13.17 cm) bearings, (8) 2-1/2” (6.35 cm) hammer retaining rods.

    Hydraulic Rod Pusher

    Set of two 1” (2.54 cm) thick steel heavy-duty screens

  • Specs - Discharge System

    Three 16” (40.64 cm) diameter augers discharging onto a 60” x 34” (152.4 cm x 10.36 m) heavy-duty conveyor. Discharge height is 18” (45.72 cm).

  • Specs - General

    Length (transport): 49’8” (15.14 m)
    Length (operating): 68’10” (20.98 m)
    Height: 13’6” (4.11 m)
    Width: 12” (3.66 m)

    Gross weight: 101,080 lbs. (45,850 kg)
    Axle weight: 59,920 lbs. (27,180 kg)
    Tongue weight: 41,160 lbs. (18,670 kg)

    Engine: CAT
    Horsepower: 1,050 HP to 1,200 HP (782 kW to 895 kW)

    Fuel capacity (tank): 606 gallons (2,294 litres)
    Hydraulic oil capacity: 328 gallons (1,242 litres)

    Screen Area: 5,735 sq in (37,000 sq cm)

  • Specs - Tub

    Tub has 11’2” (3.4 m) diameter at inside base, 60” (152.4 cm) deep walls constructed of 3/8” (9.52 mm) reinforced steel plate, and floor constructed of 1/2” (12.7 mm) thick T-1 wear-resistant steel, supported by (16) roller guides carried on (8) 1-1/2” (3.81 cm) diameter chrome shafts and (8) 2” shafts.

    90-degree full tilt tub for easy access to hammermill with hydraulically powered variable RPM forward and reverse tub control; Morbark Integrated Control System tub controlled with automatic reversing tub, sensor system.

    Tub cover for debris containment

    Engine gauge panel and emergency shut-down system.

    Heavy-duty 12” (30.48 cm) tube frame with hydraulic stabilizer legs

    15” (4.57 m) diameter opening across the top

  • Specs - Options
    • Magnetized end pulley with collecting slide tray for ferrous metal removal
    • Morbark automatic reversing fan system
    • 11 HP auxiliary air compressor
    • Air compressor guard
