Key Features & Specs

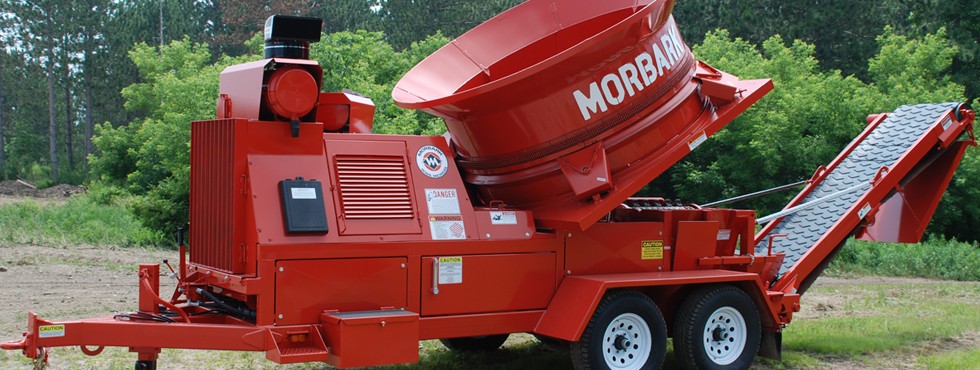

Compact and easy-to-haul, Morbark 950 Tub Grinders are ideal for converting yard and wood waste, pallets and other mixed woody feedstocks into saleable products. The 950 tub grinder is equipped with a proven drive line protection system that protects against catastrophic damage from contaminants. Hydraulic augers quickly remove product from beneath the mill; laser-cut, factory-balanced hammermills with forged hammers offer smooth operation; full breakaway torque limiter protects the engine and clutch against overload without stalling; and tub tilt provides easy access to grates and anvil for maintenance.
  • Hammermill - Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Torque Limiter - The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Hydraulic Augers - Quickly remove product from beneath the mill. During material surges, pressure sensors on the auger system automatically slow tub rotation to prevent plugging.
  • Tub Tilt - Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
  • + Expand All
  • - Close All
  • Specs - General

    Length (operating): 29’5” (8.97 m)
    Length (transport): 22” (6.7 m)
    Height (transport): 12’5” (3.78 m)
    Width: 8’4” (2.54 m)
    Gross weight: 12,750 lbs. (5,785 kg)

    Engine: CAT
    Horsepower: 202 HP (150 kW)

    Fuel capacity: 59 gallons (223 litres)
    Hydraulic oil capacity: 50 gallons (189 litres)

    Screen Area: 1,612 sq in (10,400 sq cm)

    Tow arrangement: Pintle hitch
    Brakes: Electric

    Magnetized end pulley for discharge conveyor, complete with collecting slide tray for ferrous metal removal

  • Specs - Options
    • Electric power
    • 312B Caterpillar undercarriage
    • Dual tub slide tray assembly
    • Fifth wheel towing arrangement
    • 1/3 Tub cover
    • Variety of screens
  • Specs - Tub
    • Tub has 8’4” (2.54 m) diameter opening across the top, 6’6” (1.98 m) diameter at inside base, 44” (111.76 cm) deep walls constructed of 1/4” (6.35 cm)” reinforced steel plate, and floor constructed of 1/4” (6.35 cm) thick T-1 wear-resistant steel
    • Tub supported by (5) rubber tire guide rolls
    • Hydraulic tub tilt for easy access to hammermill with hydraulically powered variable RPM forward and reverse tub control with electronic sensor drive
    • Remote control
    • Front stabilizer
    • Dual axles
    • Tub cover for debris containment
  • Specs - Discharge System

    Two 12” (30.48 cm) diameter augers discharge to 28” wide x 12” (71.12 cm x 3.66 m) upright discharge conveyor

  • Specs - Hammermills and Screens

    22-1/2” x 32-1/2” (57.15 cm x 82.55 cm) hammermill system constructed of heavy-duty 16” diameter laser-cut rotor, (13) 1-1/8” (34 cm) thick 2-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 4-1/2” (11.43 cm)  diameter rotor shaft with 2-15/16” (7.46 cm) bearings direct driven at engine RPM and (8) 1-1/4” (3 cm) hammer retaining rods.
