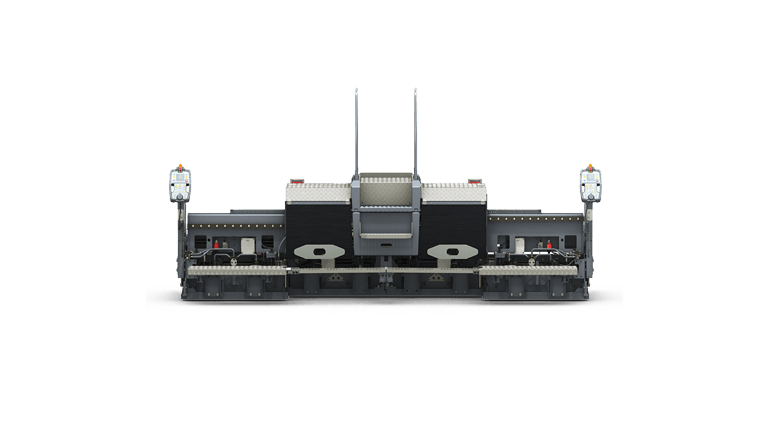

VOGELE AB 500
Extending Screeds
Equipment Specifications
| COMPACTING SYSTEMS - Pressure bar drive (P) | pulsed hydraulic |
|---|---|
| PROFILE SETTINGS - Height adjustment, extending units | -1 in to 1 in |
| COMPACTING SYSTEMS - Speed (max.) | 1,800 rpm |
| COMPACTING SYSTEMS - Pressure bar pulse frequency (P) (max.) | 68 Hz |
| COMPACTING SYSTEMS - Frequency (max.) | 50 Hz |
| PAVING WIDTHS - Maximum paving width | 27 ft 11 in |
| COMPACTING SYSTEMS - Vibrators (V) | eccentric vibrators |
|---|---|
| PAVING WIDTHS - Length | Bolt-on extensions 10 in 30 in 49 in |
| COMPACTING SYSTEMS - Stroke (TP1, TP2) | 0.08 in, 0.16 in, 0.28 in |
| PROFILE SETTINGS - Version | hydraulic |
| PAVING WIDTHS - Basic width | 8 ft 4 in |
| SCREED HEATING - Control | fully automatic, thermostat-controlled |
| PROFILE SETTINGS - Crown adjustment | -2.5 % to 5 % |
| SCREED HEATING - Output generation | three-phase AC generator |
| COMPACTING SYSTEMS - Stroke (TP2 Plus) | 0.16 in, 0.28 in, 0.35 in |
| COMPACTING SYSTEMS - Hydraulic oil pressure (max.) | 1,740 psi |
| PAVING WIDTHS - Hydraulically adjustable | 8 ft 4 in to 16 ft 5 in |
| SCREED HEATING - Heating rods | on screed plates and in tamper bars |
| SCREED HEATING - Optional screed heating | function monitoring of each individual heating rod |
| COMPACTING SYSTEMS - Compacting systems | TV, TP1, TP2, TP2 Plus |
| DIMENSIONS AND WEIGHTS - Depth (in transport position) | Screed Depth AB 500 TV 4 ft 2 in AB 500 TP 4 ft 8 in |
| DIMENSIONS AND WEIGHTS - Weight of basic screed | Screed Weight AB 500 TV 7,170 lbs AB 500 TP1 7,940 lbs AB 500 TP2 8,600 lbs AB 500 TP2 Plus 9,300 lbs |
| COMPACTING SYSTEMS - Stroke (TV) | 0.16 in |
| PROFILE SETTINGS - Slope, extending units (max.) | 2 % |
Featured Content
VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.
VÖGELE sets the benchmark with products that deliver a phenomenal degree of precompaction in the paving process. Cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high-compaction system with tamper and pressure bars.
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
The pressure bars driven by pulsed-flow hydraulics are the core of VÖGELE high-compaction technology. By combining screed versions TP1, TP2 and TP2 Plus with this unique technology, our pavers achieve maximum compaction values. Compaction performances of over 98% can be achieved with VÖGELE’s unique high-compaction technology – without rolling.
The operating principle of all VÖGELE extending screeds is the single-tube telescoping system. Even at maximum extension, half of the three-part, generously-sized telescoping tube is clamped, ensuring optimum stabilization. As the telescoping system is arranged at a high level, this prevents any contact with paving mix.
The extending screed for all SUPER pavers of the 8 ft class
The AB 500 Extending Screed combines with all VÖGELE tractor units featuring a basic width of 8 ft. With its infinitely adjustable single-tube telescoping system, this screed covers a virtually unlimited spectrum of applications with paving widths ranging from 8 ft 4 in to 16 ft 5 in and even to 27 ft 10 in with bolt-on extensions. The AB 500 is available with tamper and vibrators as well as in two versions for high compaction (with tamper and one or two pressure bars) or, alternatively, in the TP2 Plus version for particularly high compaction.
