VOGELE AB 220
Extending Screeds
Maximum precision and high precompaction values in the Mini Class

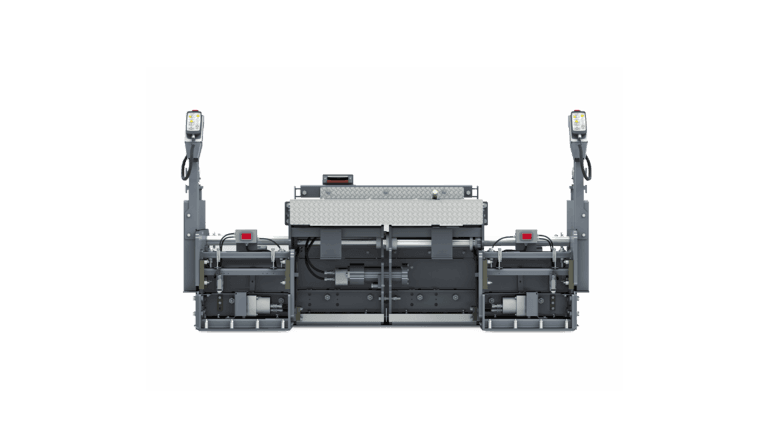

Designed for our small pavers, the high-precision AB 200 Extending Screed delivers a high degree of precompaction. It is available in two screed versions. The AB 220 V (with vibrators) has been specially designed for use with the SUPER 700i. The AB 220 TV (with tamper and vibrators) combines with the SUPER 800i.
| PROFILE SETTINGS - Crown adjustment | -2 % to 4 % |
|---|---|
| PAVING WIDTHS - Minimum paving width | 1 ft 8 in |
| COMPACTING SYSTEMS - Vibrators (V) | eccentric vibrators |
| PAVING WIDTHS - Cut-off shoes | 1 ft 8 in - 3 ft 11 in |
| COMPACTING SYSTEMS - Compacting systems | V, TV |
| DIMENSIONS AND WEIGHTS - Width (with end gate) | 4 ft 7 in |
| SCREED HEATING - Heating rods | on screed plates and in tamper bars |
| DIMENSIONS AND WEIGHTS - Depth (in transport position) | Screed Depth AB 220 2 ft 6 in |
| COMPACTING SYSTEMS - Frequency (max.) | 50 Hz |
| PAVING WIDTHS - Length | Extra bolt-on extensions Bolt-on extensions (V, TV) 10 in (V, TV) 20 in (TV) 26 in |
| COMPACTING SYSTEMS - Speed (max.) | 1,800 rpm |
| SCREED HEATING - Output generation | three-phase AC generator |
| PAVING WIDTHS - Basic width | 3 ft 11 in |
| PROFILE SETTINGS - Version | mechanical |
| DIMENSIONS AND WEIGHTS - Weight of basic screed | Screed Weight AB 220 V 1,590 lbs AB 220 TV 1,810 lbs |
| PAVING WIDTHS - Maximum paving width | 11 ft 6 in |
| PAVING WIDTHS - Hydraulically adjustable | 3 ft 11 in to 7 ft 3 in |
| COMPACTING SYSTEMS - Stroke (TV) | 0.16 in |
Featured Content
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
The operating principle of all VÖGELE extending screeds is the single-tube telescoping system. Even at maximum extension, half of the three-part, generously-sized telescoping tube is clamped, ensuring optimum stabilization. As the telescoping system is arranged at a high level, this prevents any contact with paving mix.
VÖGELE sets the benchmark with products that deliver a phenomenal degree of precompaction in the paving process. Cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high-compaction system with tamper and pressure bars.
VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.
